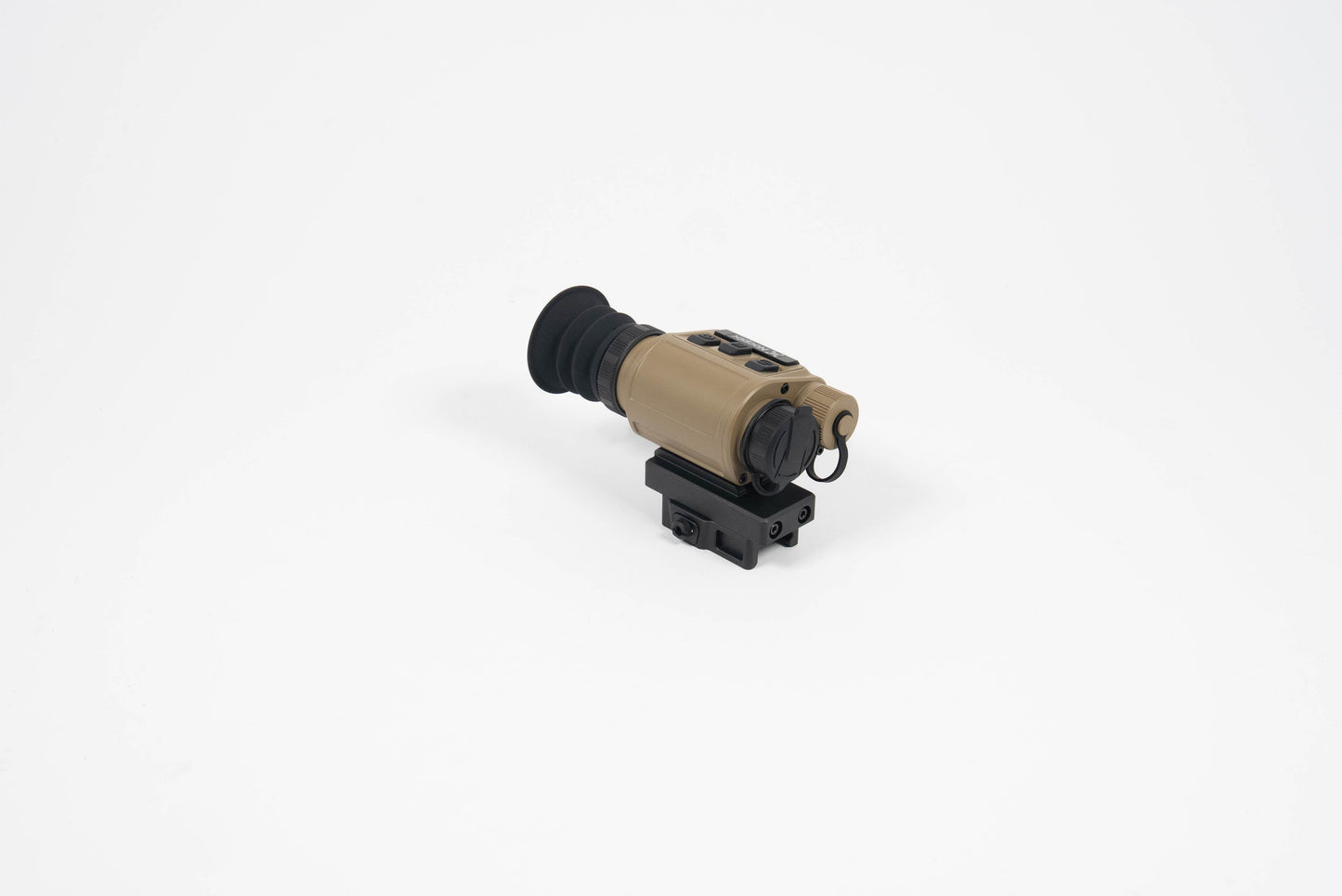

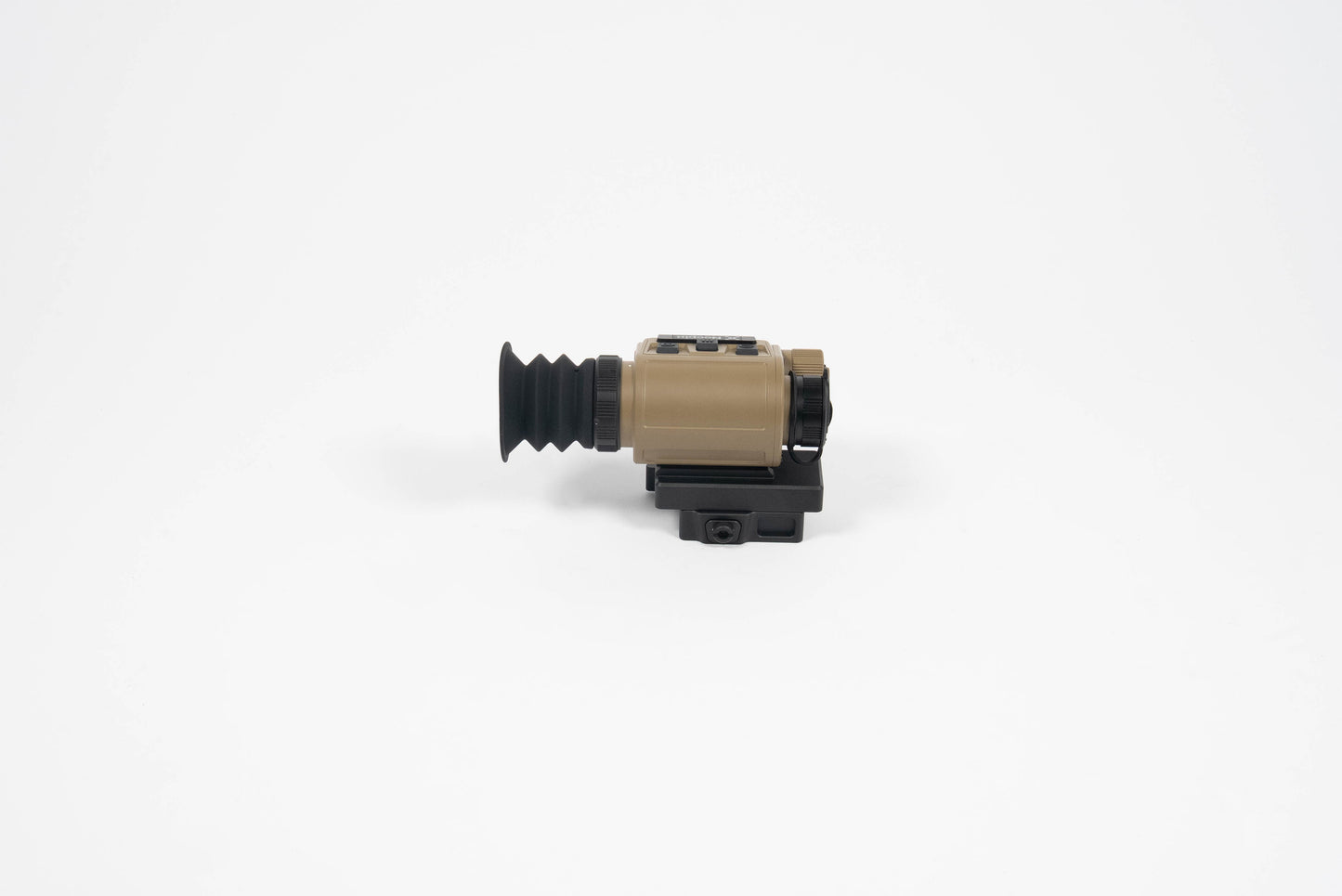

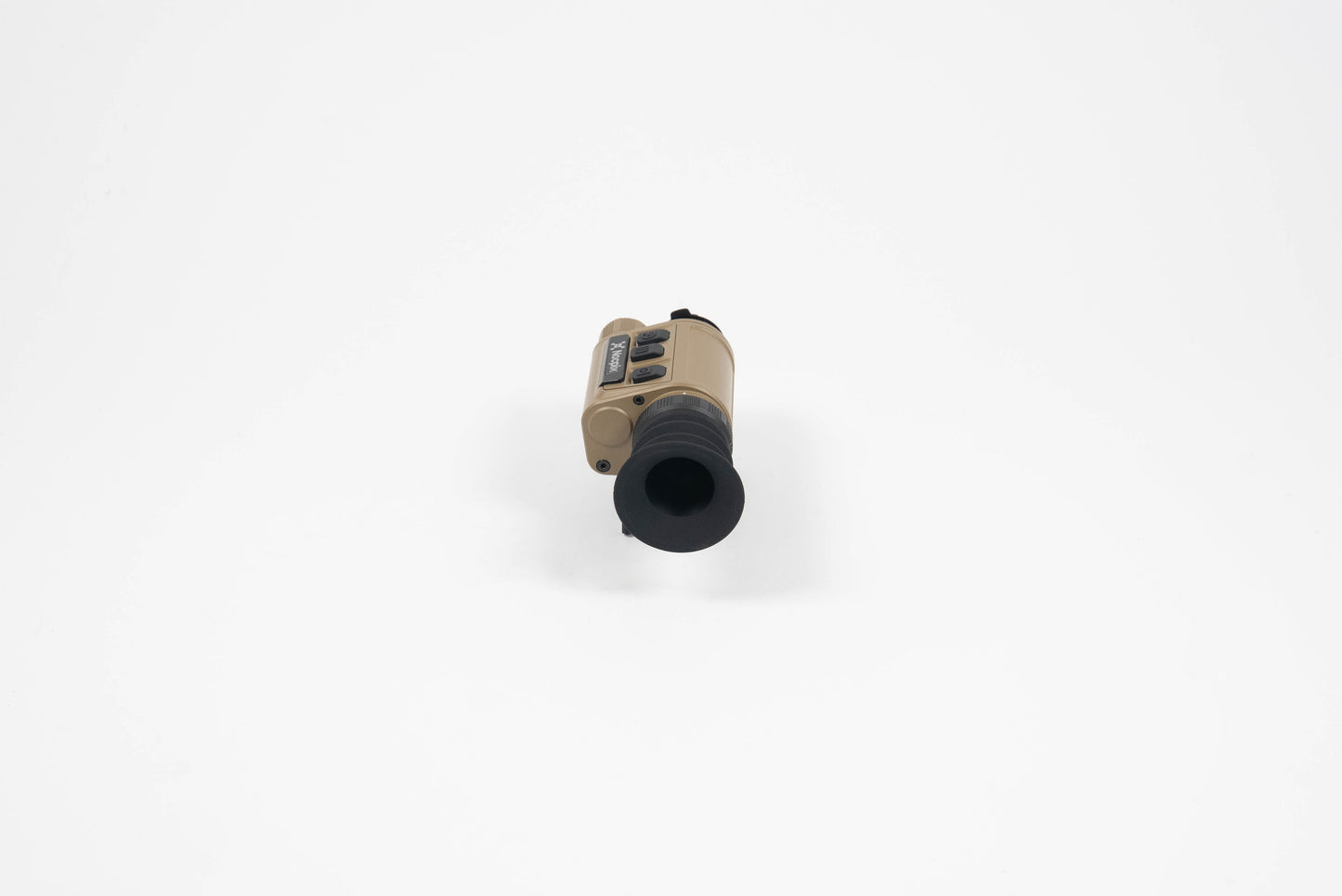

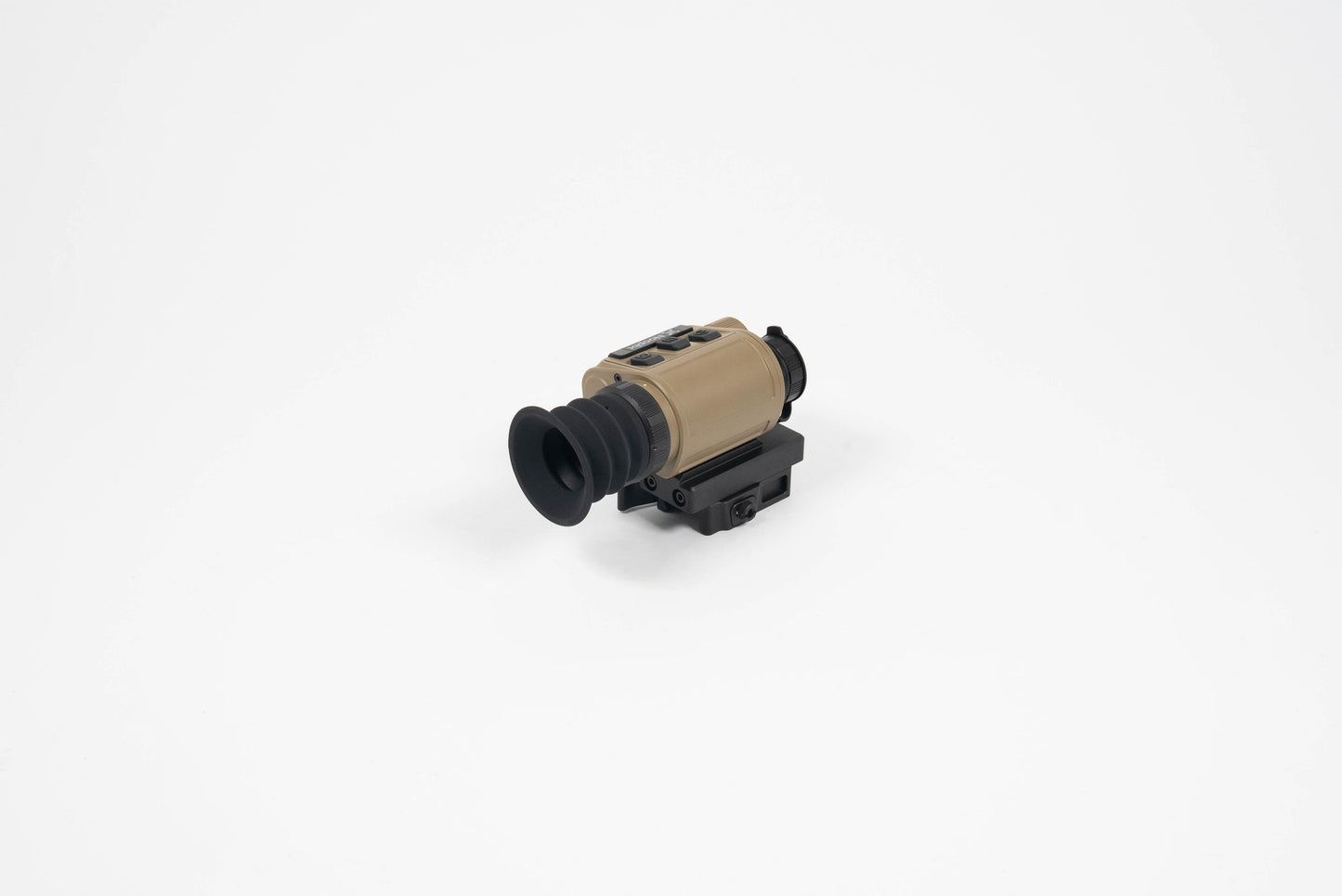

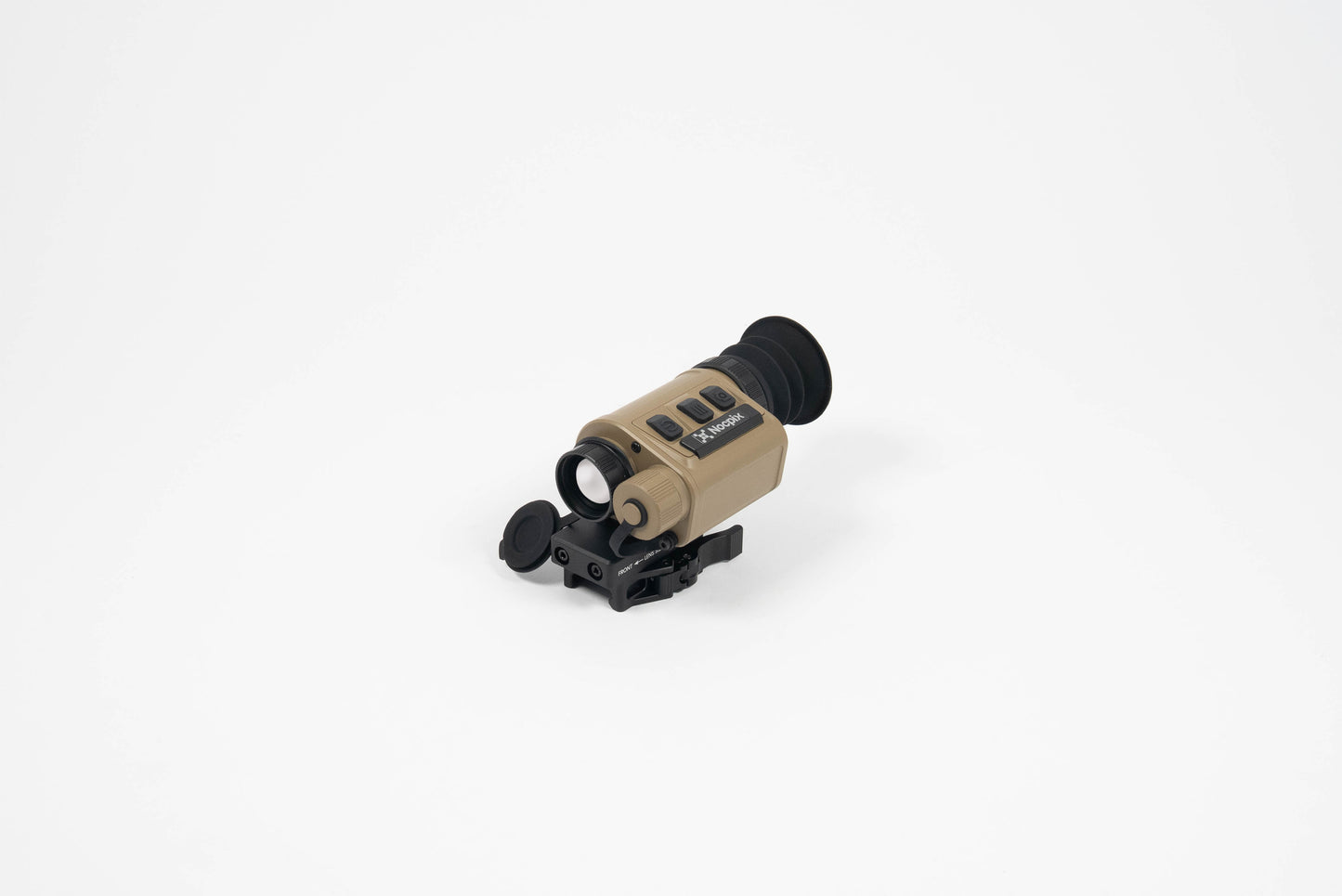

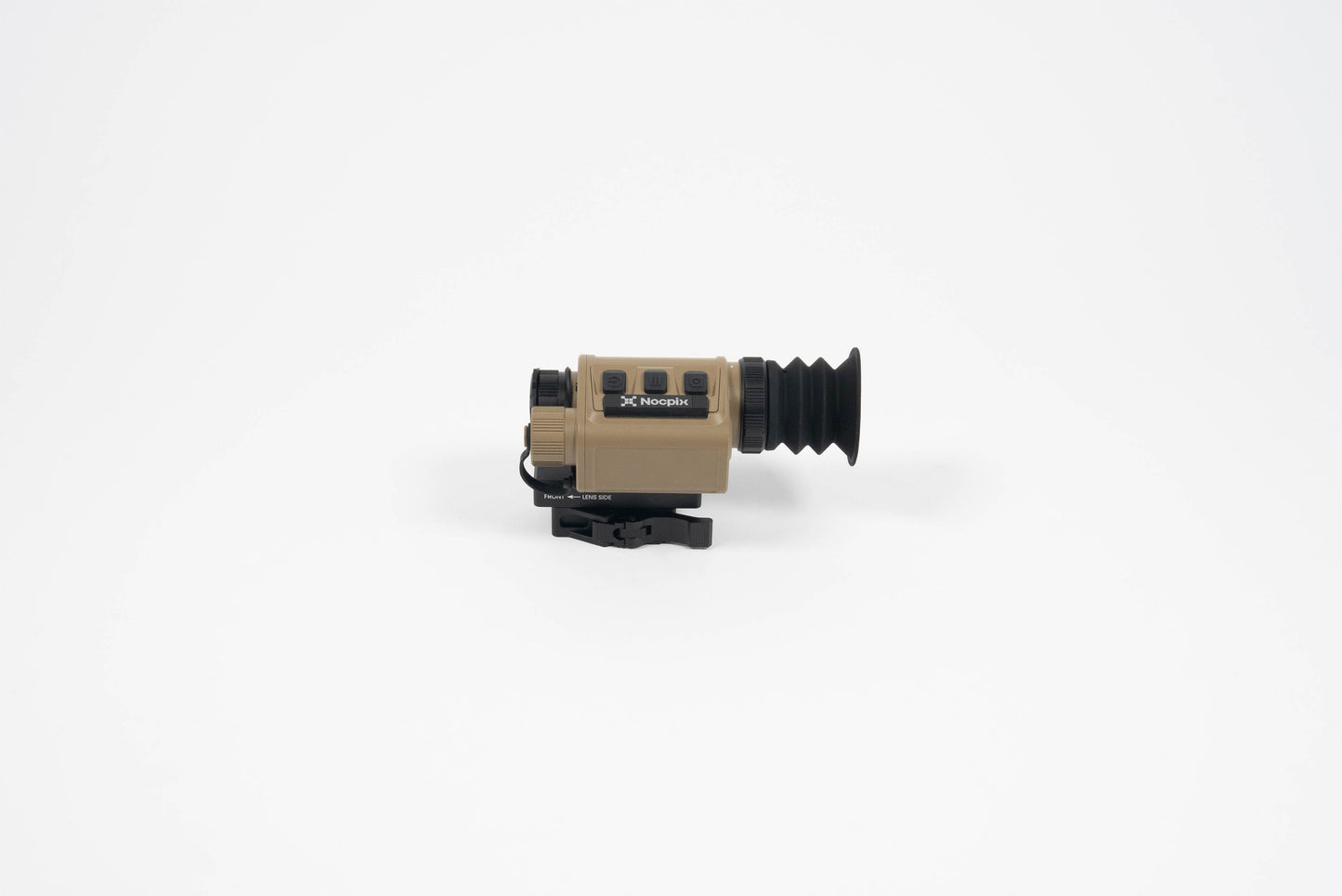

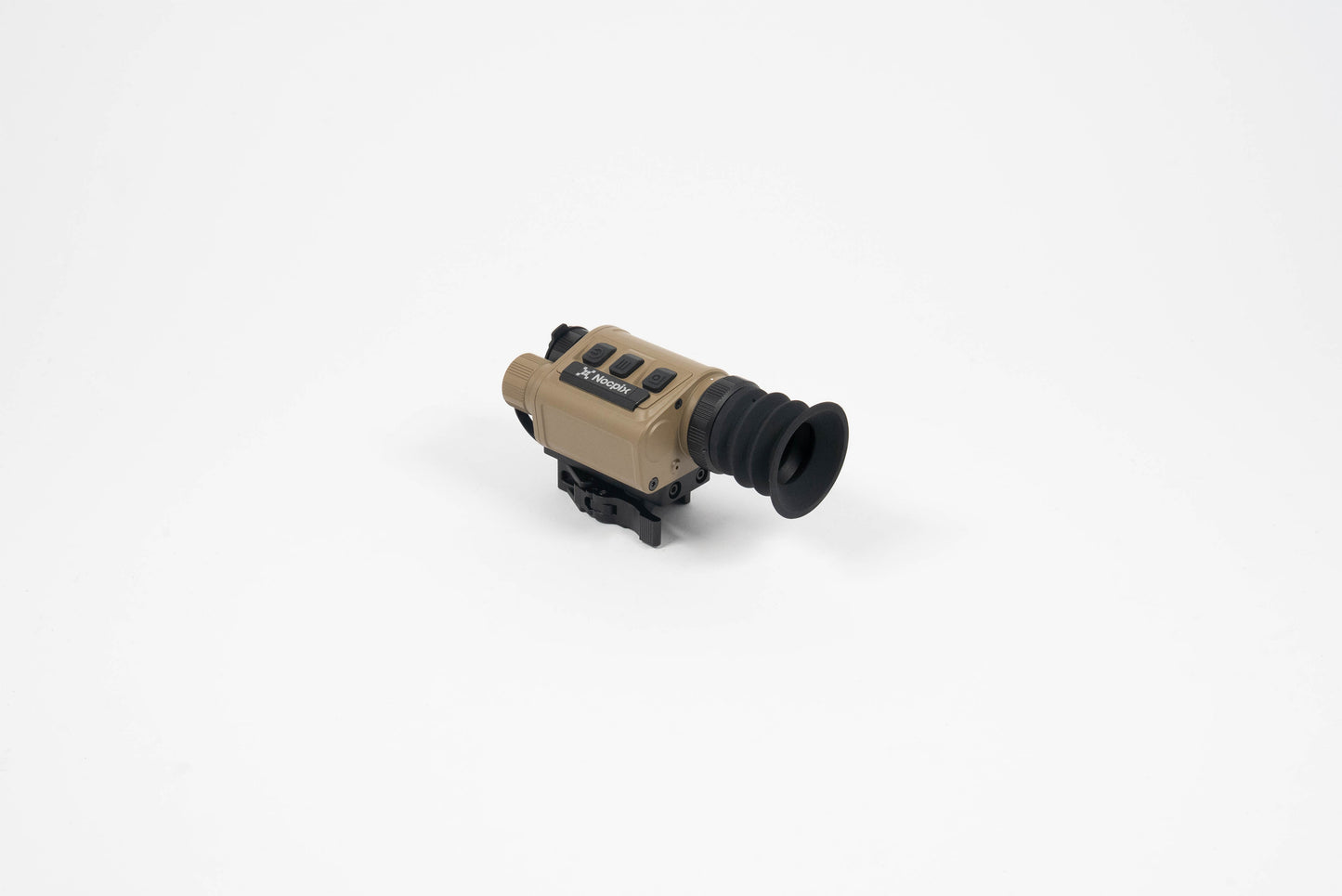

Nocpix MICRO 2 H25 640 Multi-Function Thermal

The new Nocpix MICRO 2 H25 is the next generation in the RH25 thermal optic line, keeping the same 4-in-1 versatility as a helmet-mounted, clip-on, handheld, and standalone sight while upgrading nearly every system underneath. It features a second-generation 640 × 512 detector with 15 mK NETD and a 20% responsivity gain, producing a cleaner, more detailed thermal image than the RH25 V2's 640 × 480 sensor. Its in-house FastEngine architecture cuts latency by 21%, reducing lag and fatigue during long nights of movement. In clip-on mode, it now supports day scopes from 1 to 10× (up from 6×), thanks to a 2560 × 2560, 1.03-inch display.

The body is also shorter and narrower, freeing up rail space and improving binocular alignment. Runtime extends to up to 9 hours on a single 18650 battery when using Auto Power Save, and three independent zero profiles let you swap platforms or day optics without re-zeroing. Standalone use adds Picture-in-Picture for a magnified aiming window without losing situational awareness. Across all modes, you get an overhauled UI, -40°F cold-weather batteries, and IP67 water and dust resistance.

Optional accessories for helmet mounted and clip-on use include the MICRO PICTAIL 2, MQD, and FLIP TO SIDE mounts.

• Helmet FOV: The 17.5° × 13.1° field of view is unchanged from the RH25, giving a familiar sight picture for scanning and detection.
• Width: The unit is trimmed from 65.8 mm to 63.4 mm, leaving more room for interpupillary adjustment in dual-unit binocular setups.
• Clip-on length: Length is down 12% to 101 mm, freeing rail space for a laser, illuminator, or light.
• Enhanced clip-on support: Clip-on mode now supports day optics from 1 to 10× (up from 6×), thanks to the 1.03-inch AMOLED display.
• Clip-on zeroing: Three independent zeroing profiles with numerical zero values let you save distinct zeros across platforms or day-optic setups without re-zeroing.
• Clip-on UI: Menus, battery status, and HUD indicators are repositioned to the center of the screen so that they stay visible as day optic magnification climbs..
• Dual-Link: Two H25s pair into one thermal binocular system with menu, palette, image settings, and zoom controlled from a single master unit.
• Optimized for dual-band: Dedicated NV modes strip out low-temperature ambient clutter so thermal and night vision fuse more easily, and outline mode reduces heat sources to clean outlines that give location and shape while night vision carries the environmental picture.
• Magnification: 1× base magnification with up to 4× digital zoom gives a wide native picture for search, then lets you close in on a heat signature, with smoothed zoom transitions for a more natural feel.
• Wireless remote: The included remote controls recording, brightness, and menus, with a scroll wheel for digital magnification and menu navigation without taking your hands off the gun or tripod.
• Power management: True Sleep drops the unit into an ultra-low-power state during downtime, flip-to-standby powers it down the moment it's flipped out of position, and Power-Saving Mode stretches runtime to 9 hours on a single 18650 battery.
• Sight controls: Customizable reticles, app-based zeroing, and adjustable reticle brightness provide the controls expected from a modern thermal optic.
• Recording output: Recorded video resolution increases from 768×576 on the RH25 V2 to 1280×960 on the H25, roughly 2.8× the pixels, for noticeably sharper footage.
• Mounting: Ships with a 1.93 centerline recoil mitigating QD mount.

Built for Demanding Conditions

The MICRO 2 H25 includes upgrades throughout the system while maintaining the proven durability of the RH25 platform.

• IP67 water and dust resistance

• Cold-weather batteries rated to -40°F

• 64GB onboard storage

• 60 Hz refresh rate

• 33 ms low latency

• 2560 × 2560 AMOLED display

• Up to 9 hours of runtime

The redesigned software and user interface also provide cleaner navigation with fewer menu layers, making essential settings faster to access.

Key Features

• 640 × 512 thermal resolution

• 15 mK NETD or better

• 17.5° × 13.1° FOV

• 33 ms low latency

• 60 Hz refresh rate

• 2560 × 2560 AMOLED display

• 1× base magnification

• Up to 4× digital zoom

• 1×–10× clip-on magnification

• Three independent zeroing profiles

• Factory-collimated Profile A

• Picture-in-Picture (PIP)

• 64GB internal storage

• Up to 9 hours of runtime

• Wireless remote included

• IP67 water and dust resistance

• -40°F cold-weather battery rating

One Platform. Four Ways to Use It.

The MICRO 2 H25 combines proven RH25 platform design with meaningful upgrades in thermal sensitivity, latency, battery life, display resolution, clip-on magnification, and overall usability.

From helmet-mounted thermal observation and handheld scanning to clip-on configurations and standalone thermal applications, the H25 delivers a compact, adaptable thermal imaging solution built for demanding low-light and outdoor environments.
