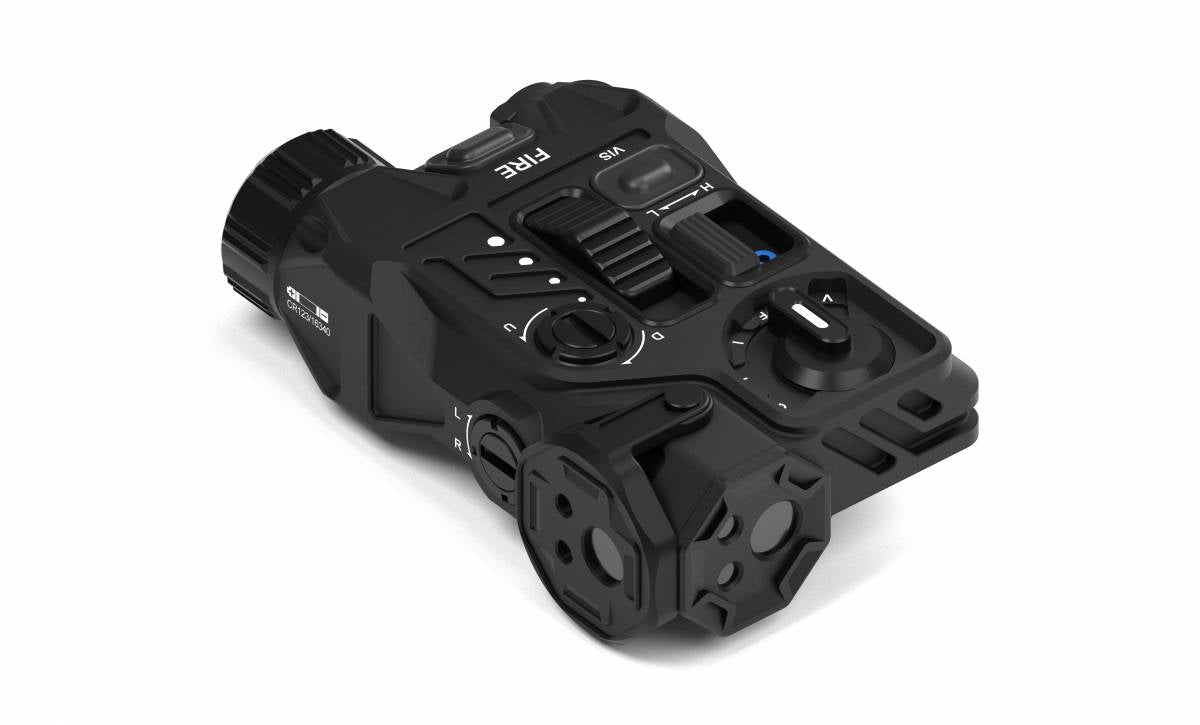

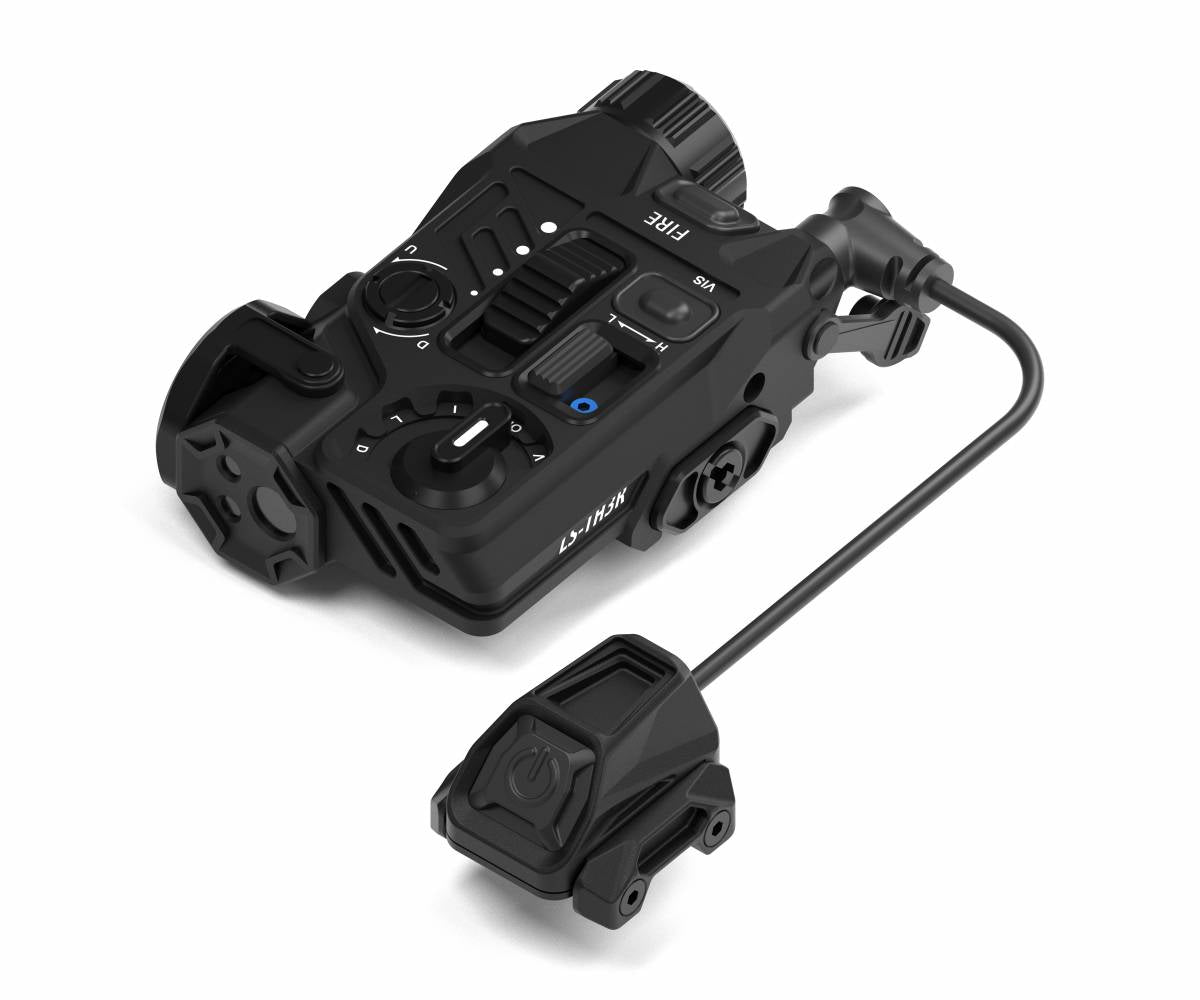

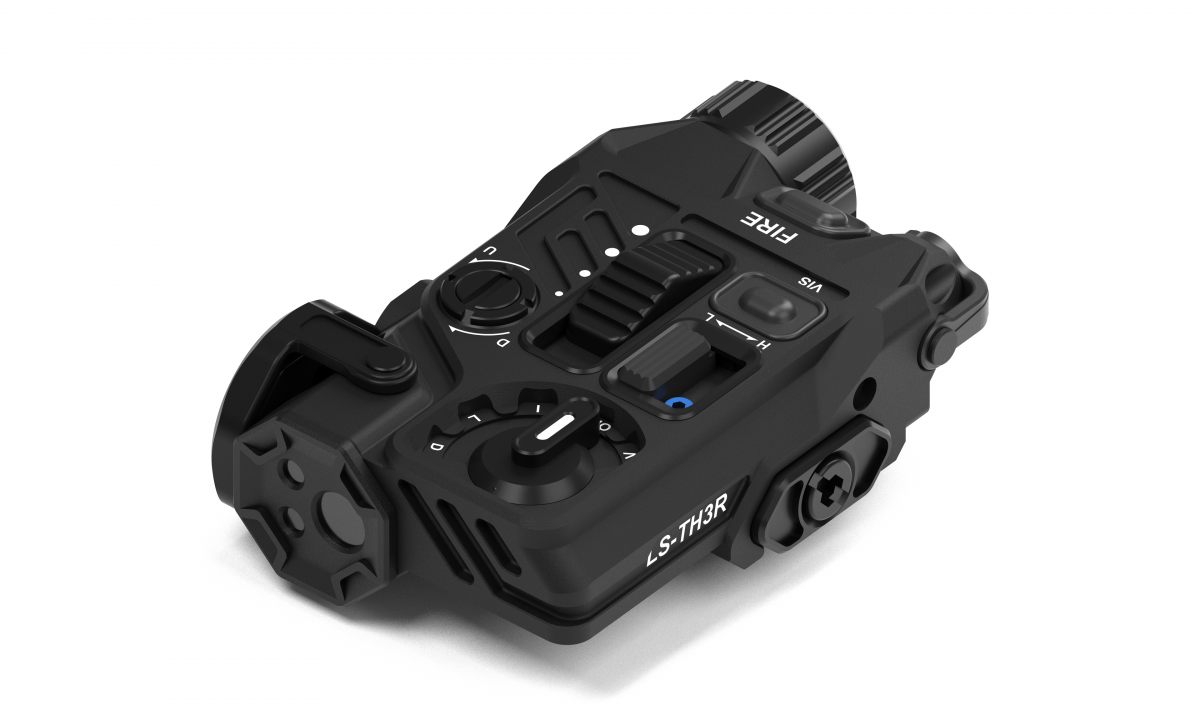

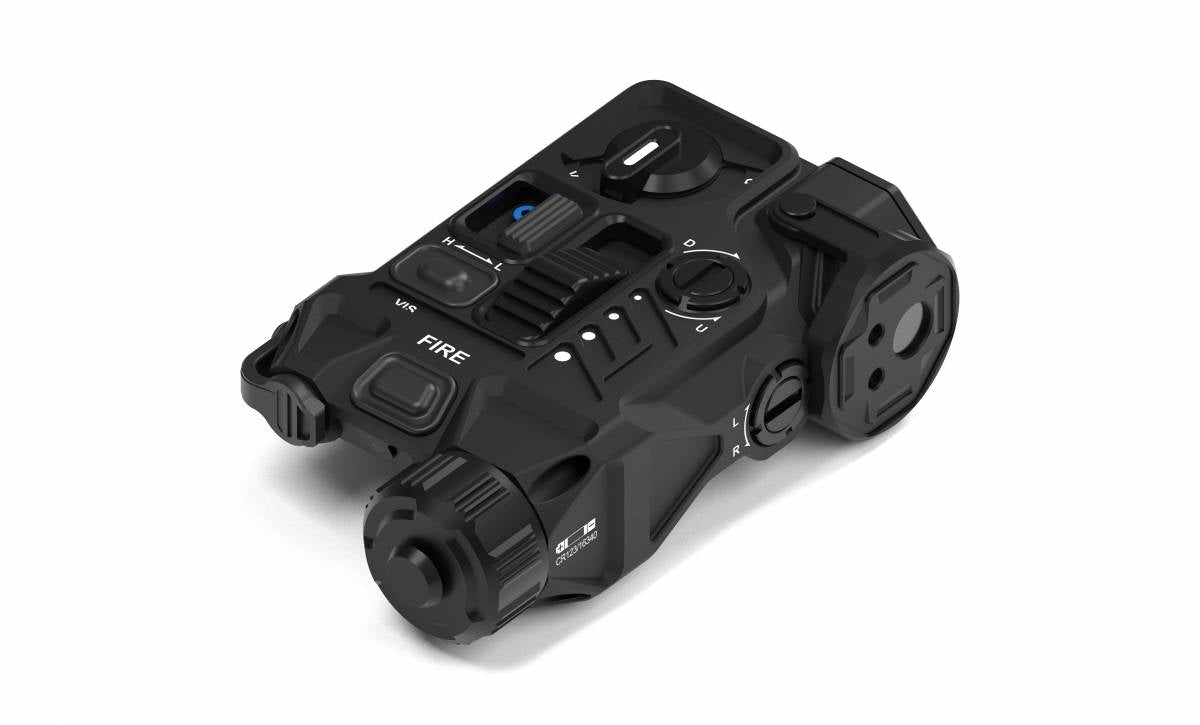

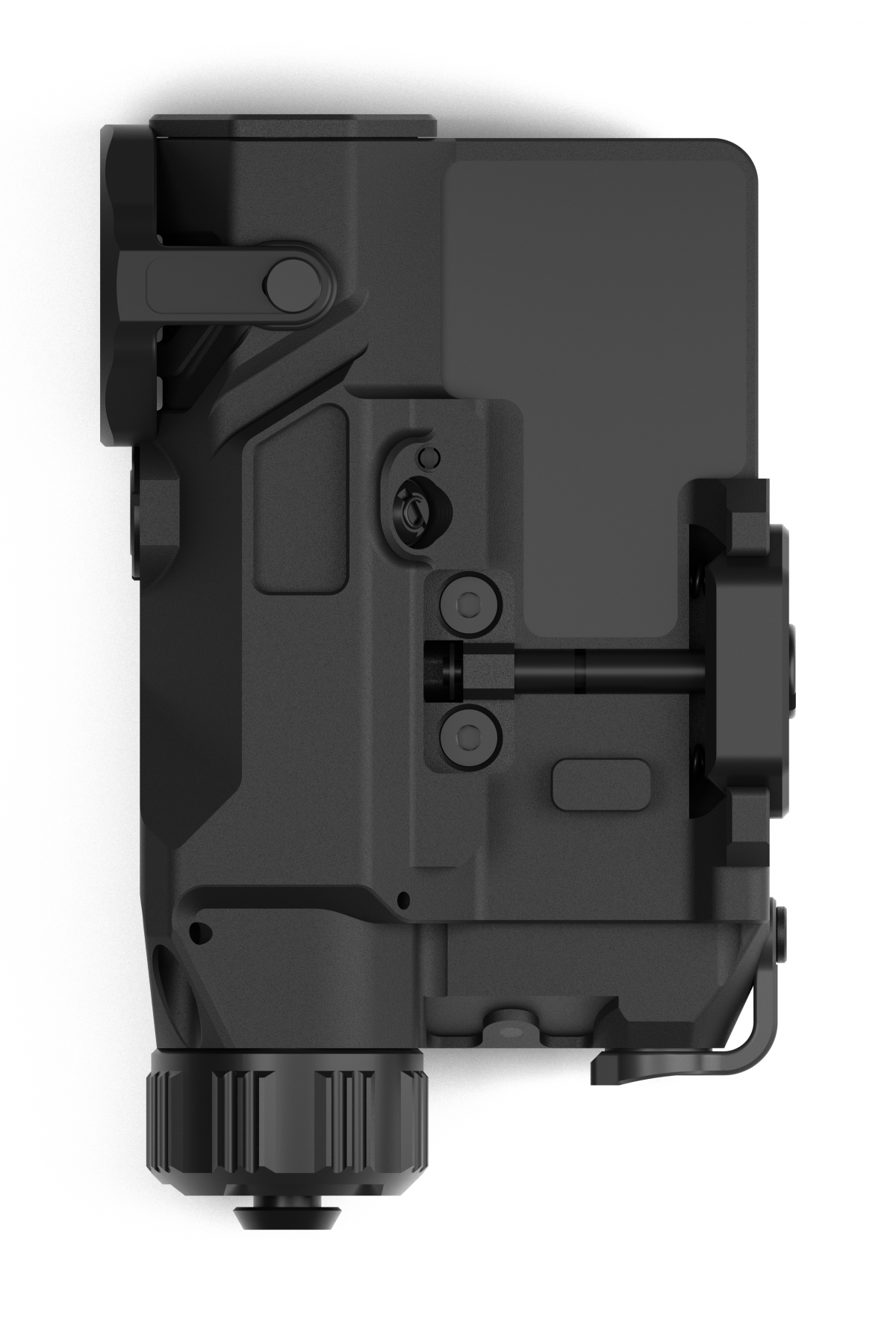

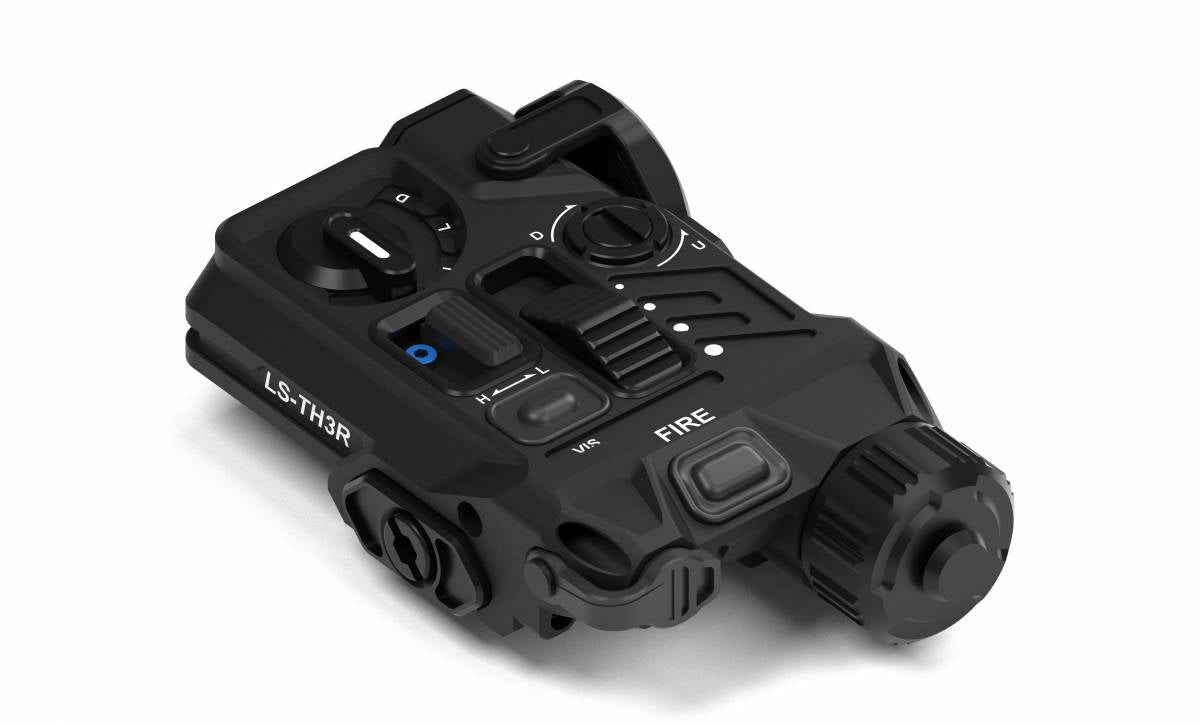

LASERSPEED LS-TH3R 3-In-1 Laser

LASERSPEED LS-TH3R is a lightweight 3-in-1 laser module system designed for modern night vision users, integrating a visible green laser, an IR laser, and an adjustable 850 nm VCSEL IR illuminator into one compact, low-profile platform.

A lightweight 173g and only 0.67" above the rail when mounted, TH3R delivers full laser and illumination capability in a streamlined package, making it well-suited for professional night vision setups.

The LASERSPEED LS-TH3R features a Quick Adjust Diffuser (QAD) designed to deliver a smoother, more uniform IR beam for improved close-range performance and greater flexibility in night vision applications.

Key Features

Ultra-Low. Ultra-Light.
Full 3-in-1 capability at only ~173 g, with a low 0.67-inch above-rail profile to minimize weight and obstruction.

4-Stage Adaptive VCSEL Illumination
Switch between 2°, 7°, 12°, and 17° beam sizes with one intuitive push-pull control for fast adaptation across different ranges.

Tri-Beam Co-Aligned Zeroing
One W/E adjustment keeps the visible laser, IR laser, and IR illuminator aligned together. One Zero.

Quick Adjust Diffusion System
Transforms a precision dot into a rapid-acquisition circle for faster close-range use, while improving IR beam uniformity.

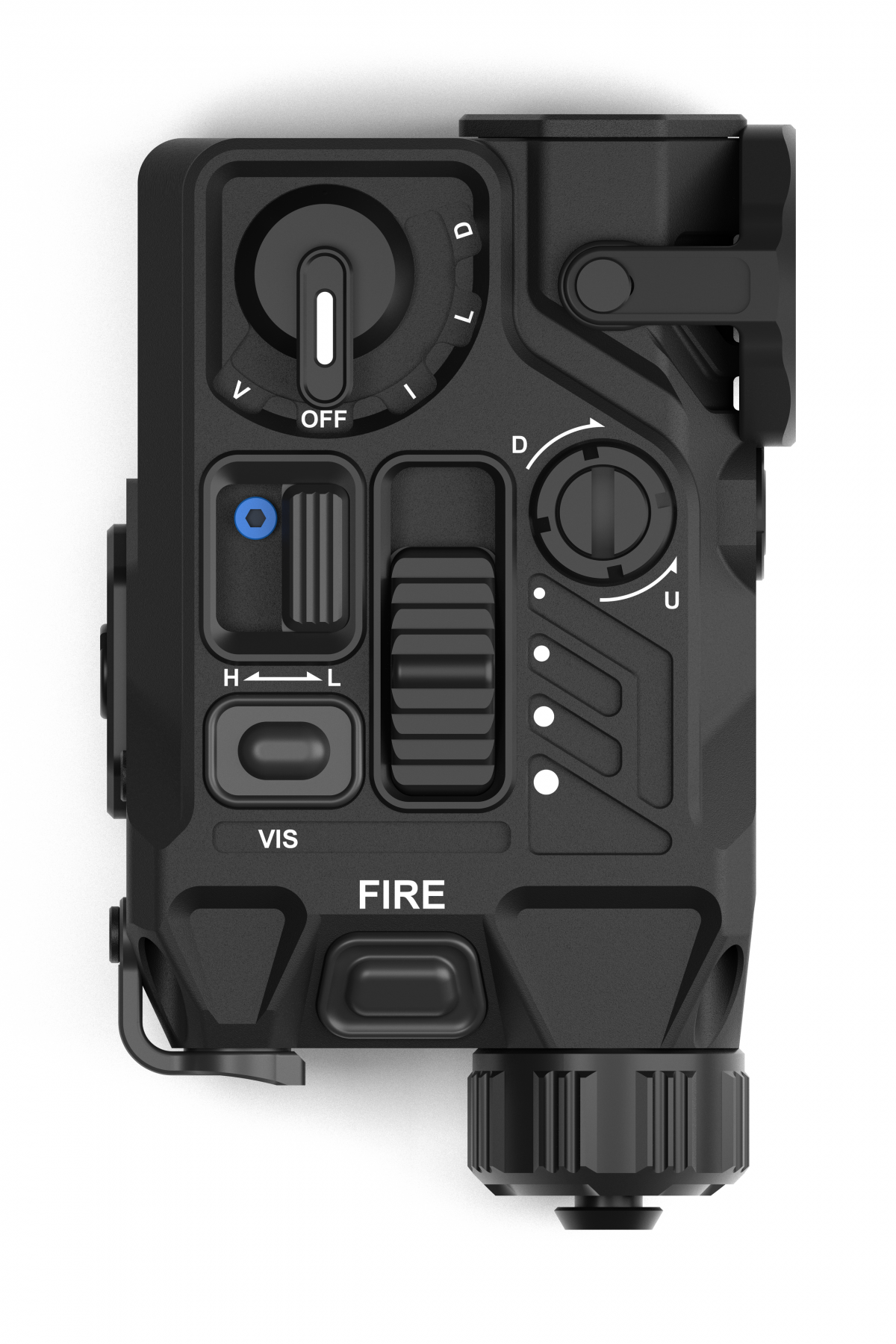

Intuitive Control System
Tactile, glove-friendly controls with one-hand beam adjustment, instant VIS override, and momentary or constant-on activation.

Specifications

Technical Details

Dimensions:
98 (L) × 57 (W) × 33 (H) mm
3.86 (L) × 2.24 (W) × 1.30 (H) in

Net Weight:
173 g / 6.10 oz

Housing Material:
Aluminum Alloy 6061 + 304 stainless steel

Mounting Torque:
30–35 in-lbs

Height Above Rail:
19.5 mm / 0.77 in above rail
(measured to the top of the button)

Battery Type:
1 × CR123A 3 V or 1 × 16340 3.7 V

Operating Temperature:
-40°C to +55°C

Shock Resistance:
1000 G, 15 Hz

Waterproof:
IP68, 2 m depth for 1 hour

Laser Specifications

Visible Laser

Laser Class: Class 3R
Output Power, L/H: <0.7 / <5 mW
Wavelength: 515 ± 5 nm
Range: ≥500 m
Beam Divergence: <0.8 mrad
Emitter Type: EEL

IR Laser

Laser Class: Class 3R
Output Power, L/H: <0.7 / <5 mW
Wavelength: 850 ± 15 nm
Range: ≥500 m
Beam Divergence: <0.8 mrad
Emitter Type: EEL

IR Illuminator

Laser Class: Class 3B
Output Power, L/H: <5 / <70 mW
Wavelength: 850 ± 15 nm
Range: ≥2000 m
Beam Divergence: 2° / 7° / 12° / 17°
Emitter Type: VCSEL

Windage / Elevation Specifications

Windage Click Value:
0.3 mrad / 1 MOA

Windage Adjustment Range:
±2°

Elevation Click Value:
0.3 mrad / 1 MOA

Elevation Adjustment Range:
±2°
