These Nocturn Industries Raptor are equipped with Elbit M24MH7 Pinnacle 2.0 2376+ FOM White Phosphor image intensifier tubes and Fujinon lenses.

M24MH7 tubes were previously only available in Elbit Systems of America factory-built AN/PVS-31D for the U.S. Marine Corps SBNVG program. We worked directly with Elbit Systems of America to establish a special contract to provide these tubes in our own systems.

M24MH7 is the highest-tier and grade of Elbit tube available, offering leading performance in both specifications and cosmetics. The M24MH7 grade has a tight maximum halo value of 0.9 and maximum EBI value of 2.0.

The M24MH7 SKU is far superior to run-of-the-mill Mil-Spec M24 tubes, which have a 1.0 maximum halo and 2.5 maximum EBI, with many spots allowed. Pinnacle 2.0 represents Elbit Systems of America’s strictest spot-specification tolerance and adherence. This means the M24MH7 SKU has significantly cleaner screen cosmetics than other tube types, such as XLSH, SLH, YH, VH, MH, M, etc.

Includes: device, data sheets, lens wipe, objective lens covers, ocular lens covers. These devices feature a lifetime housing warranty in addition to the standard warranty!

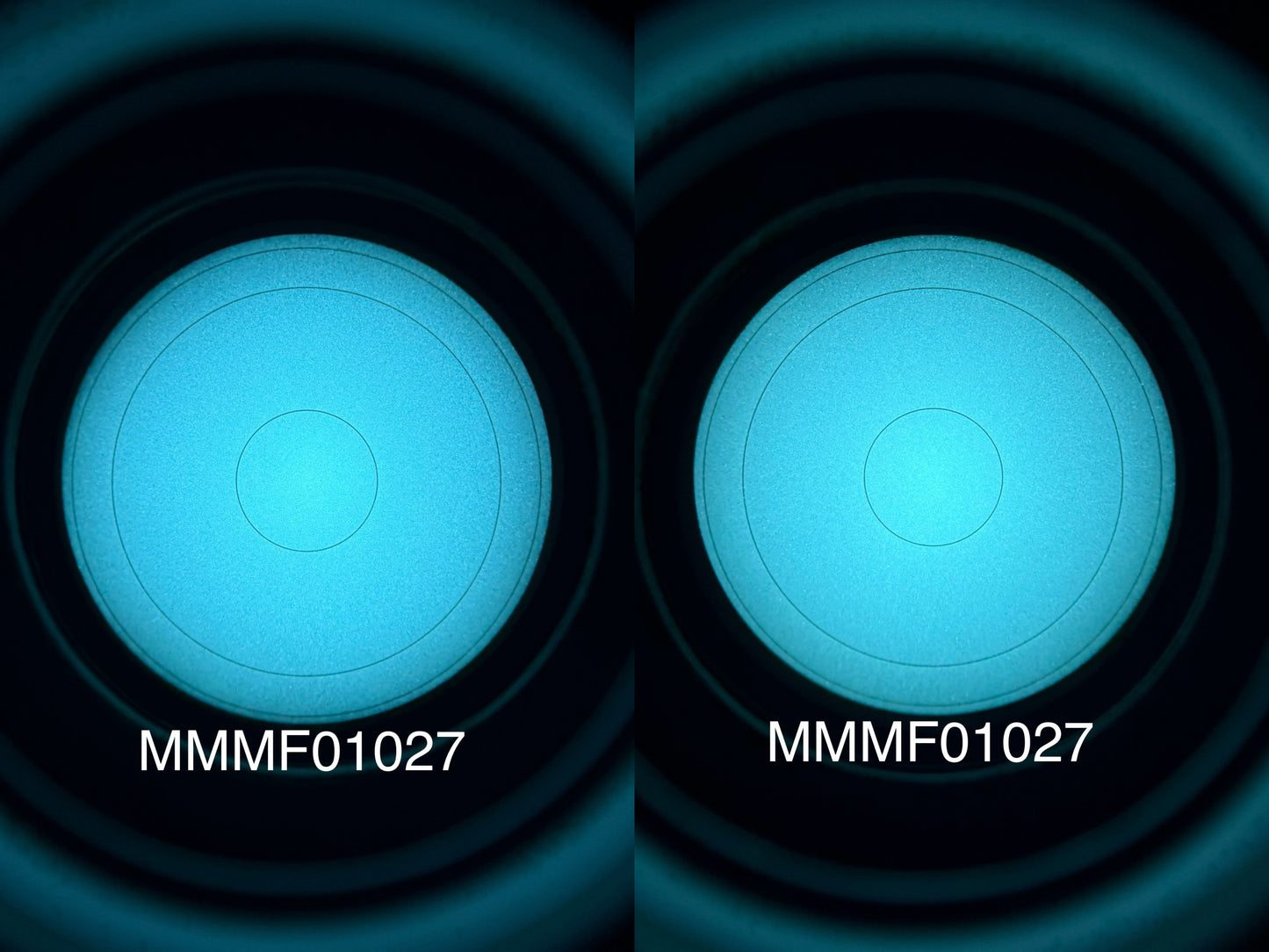

Please note: Any color differences in the photos are a result of the camera auto balance. Tubes are the same hue and color. Focus may vary slightly due to camera auto focus. Tube images were captured while on the Hoffman ANV-126A viewing the spot target/reticle and may not reflect all cosmetic aspects; pepper, bright spots, lighting, shadows, etc.

The UANVB-SC "Raptor" is Nocturn Industries' Ultra-Light Articulating Night Vision Binocular with a single control interface, building on lessons learned from previous Nocturn models and direct user feedback. The Nocturn Raptor housing is molded from a carbon-fiber-reinforced thermoplastic composite that outperforms traditional polymer housings and rivals the tensile strength of 6061-T6 aluminum, all while keeping the unit lightweight.

A single ergonomic control knob handles both power and gain adjustment. Double-tapping the knob activates the onboard IR illuminator, with an integrated status indicator and adjustable brightness while it's active. The same knob can also enable or disable auto-shutoff when the unit is stowed.

The Raptor is compatible with standard EGAC MX-11769 and 3-pad MX-11769 image intensifier tubes, as well as PVS-14 optics and accessories, and its image tube pod interchanges with Nocturn's U.N.V.M. "Talon." Low-profile, tool-free IPD knobs make interpupillary distance adjustment quick and easy for fast setup and a comfortable fit. It includes an onboard battery compartment plus an external LEMO 2-pin power port for extended runtime with external battery packs.

Fully designed and assembled in the United States, the Raptor combines a lightweight build, rugged durability, and operational versatility for professional night vision use. Every Nocturn Industries housing ships with a lifetime warranty — free repair or replacement of housing components, no questions asked (intensifier tubes and lens assemblies not included).

FEATURES

High strength hybrid fiber reinforced injection molded polymer
Manual gain control
Toolless knobbed IPD stops included
External power port (LEMO 00B)
User adjustable pod tension
26+ hours of battery life (CR123A)
IR illuminator with adjustable brightness
Low battery indicator
Individual pod on/off when articulated
Designed to meet and exceed IP68+ and MIL-STD-810H standards
Lifetime repair or replacement warranty
