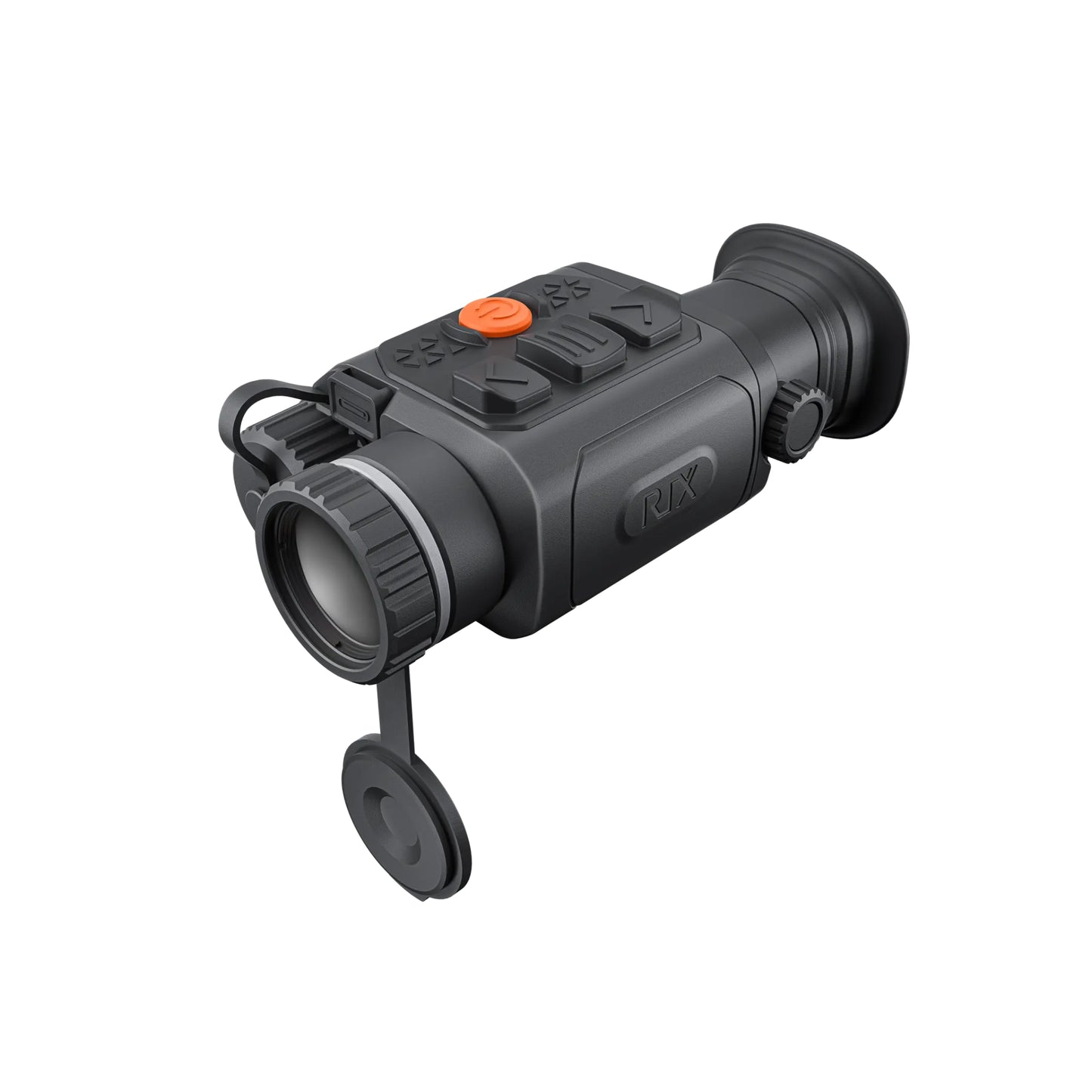

RIX Stride ST3 & ST6 Thermal Imaging Monocular

The RIX Stride Series thermal imaging monoculars deliver compact size, high-performance sensors, and intuitive operation for reliable thermal detection in complete darkness or difficult environmental conditions. Designed for handheld use, the Stride lineup includes two models - Stride ST3 and Stride ST6 - offering different sensor resolutions while maintaining the same lightweight design and user-friendly interface.

Built with modern uncooled VOx thermal sensor technology, the Stride series provides smooth thermal imaging, long detection capability, and clear heat signature contrast in a portable monocular platform.

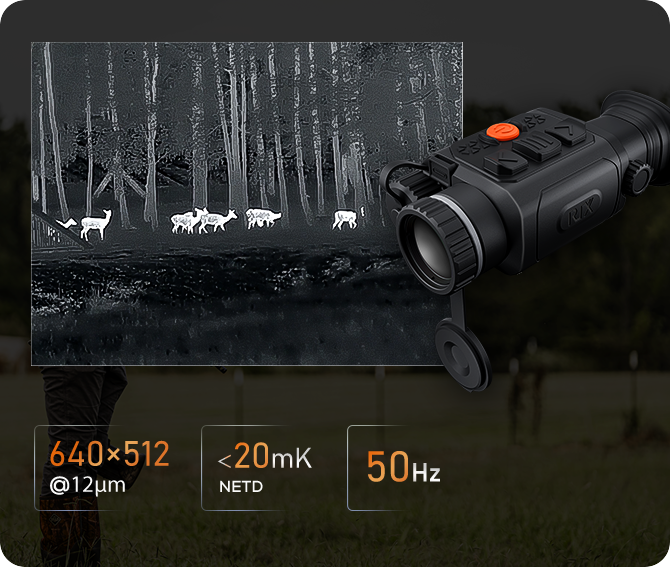

Advanced Thermal Imaging Sensors

Both models in the Stride series utilize high-quality thermal sensors designed to detect heat signatures in total darkness and through challenging conditions such as light fog, smoke, or brush.

• Stride ST3: 384 × 288 thermal sensor

• Stride ST6: 640 × 512 thermal sensor

The higher resolution ST6 provides increased image detail and improved detection performance, while the ST3 offers excellent clarity and thermal detection in a more cost-effective package.

OLED Display and Smooth Imaging

Both models feature a 1024 × 768 OLED display designed to provide crisp thermal imagery and strong contrast for comfortable viewing. A 50Hz refresh rate allows for smooth image rendering and easier tracking of moving heat signatures.

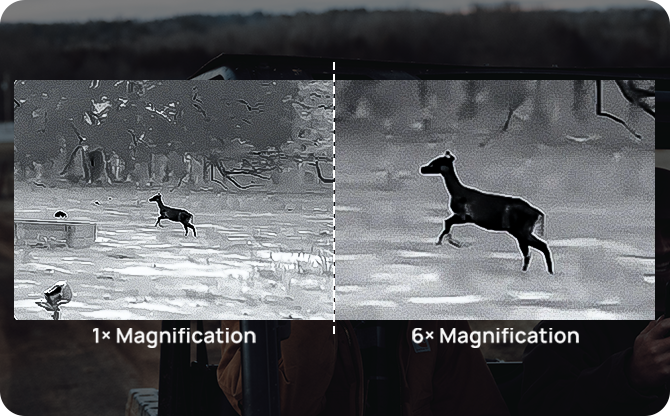

Digital magnification allows users to transition between wide-area scanning and closer observation.

• 1× to 6× digital zoom

• Multiple thermal color palettes

• High contrast OLED display for clear thermal imagery

Long Detection Performance

The Stride series is designed to provide reliable thermal detection across extended distances.

• Stride ST3: detection range up to approximately 852 yards

• Stride ST6: detection range up to approximately 1,969 yards

Detection range may vary depending on environmental conditions and target size.

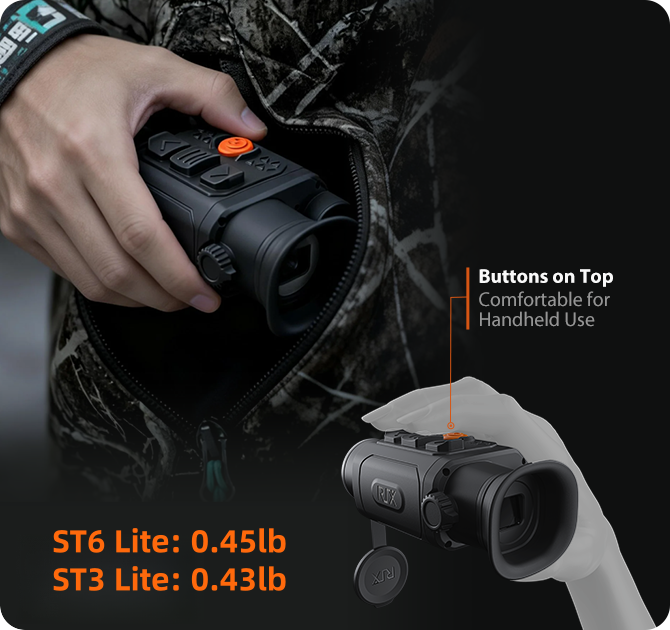

Compact and Lightweight Design

The Stride series is engineered to remain lightweight and easy to carry while still delivering strong thermal performance.

Key design features include:

• Compact handheld monocular design

• Lightweight construction

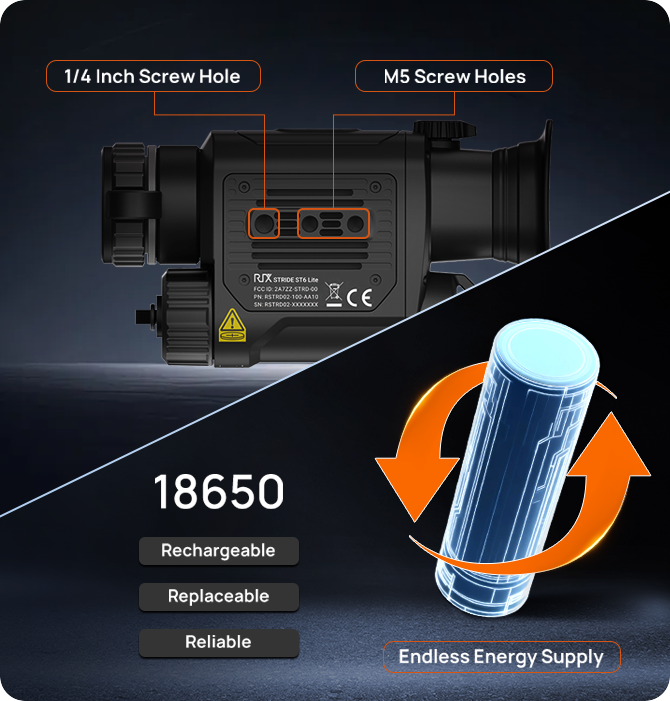

• Replaceable 18650 rechargeable battery

• Up to 10 hours of operating time depending on settings

• USB-C external power support

This design allows the Stride series to remain comfortable for extended observation sessions.

Recording and Wireless Connectivity

Both models include built-in media capture and wireless connectivity features.

• Photo and video recording

• Built-in storage up to 64GB

• Wi-Fi connectivity for mobile device viewing

• Multiple color palettes for different viewing environments

Users can record thermal observations directly on the device and transfer files wirelessly to compatible mobile devices.

Durable All-Weather Construction

The Stride series is designed for outdoor use with an IP67 protection rating, providing resistance against dust and water exposure. This durability allows reliable operation across a variety of weather conditions.

RIX Stride Model Comparison

Stride ST3

• 384 × 288 thermal sensor

• 15mm objective lens

• 1×–6× digital magnification

• 1024 × 768 OLED display

• Detection range up to ~852 yards

• Replaceable 18650 battery

Stride ST6

• 640 × 512 thermal sensor

• ~25–26.7mm objective lens

• 1×–6× digital magnification

• 1024 × 768 OLED display

• Detection range up to ~1,969 yards

• Replaceable 18650 battery

The RIX Stride ST3 offers a compact and capable thermal imaging solution for general thermal observation, while the Stride ST6 provides higher resolution and extended detection performance for users seeking maximum thermal detail. Both models combine portability, durability, and modern thermal imaging technology in a lightweight handheld platform.
