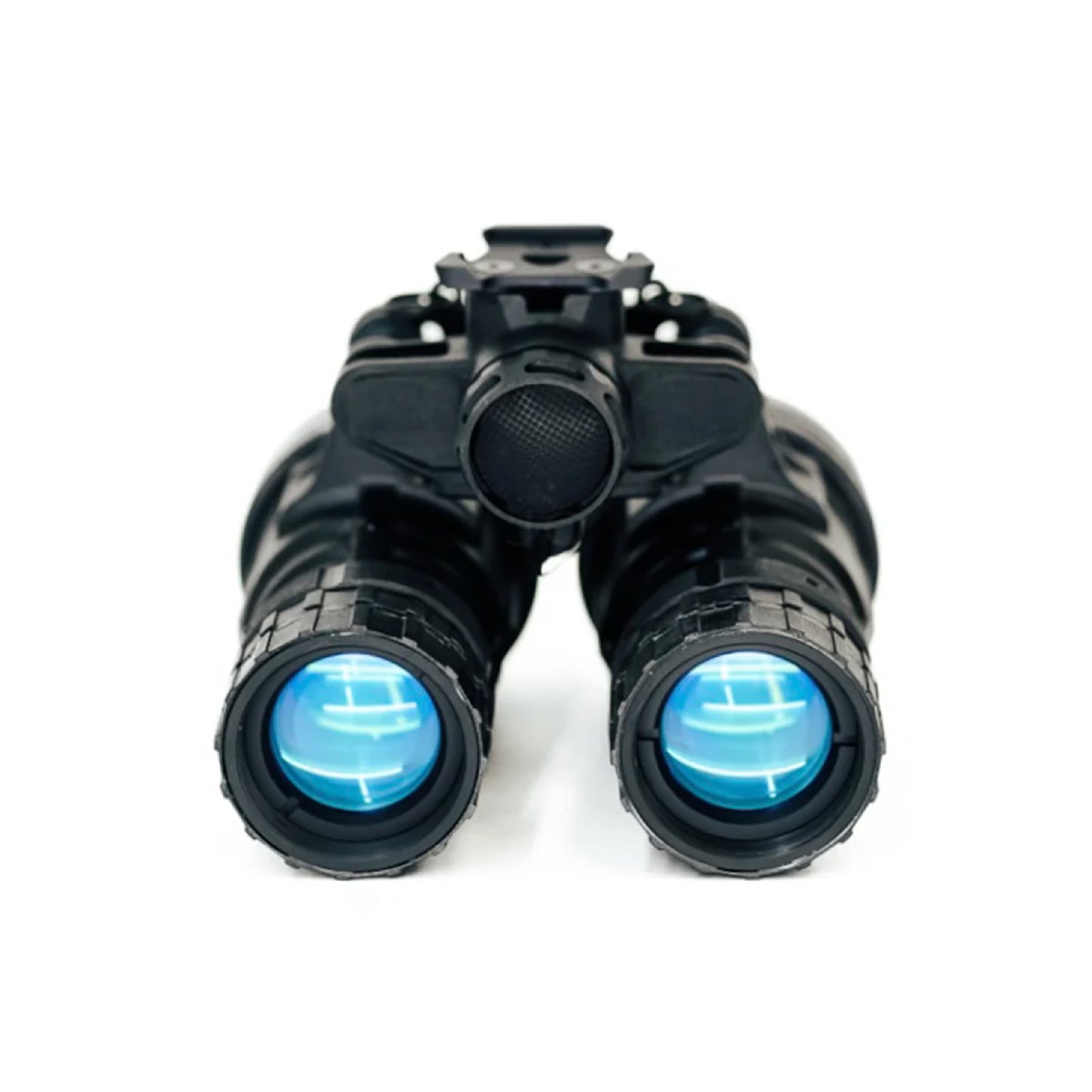

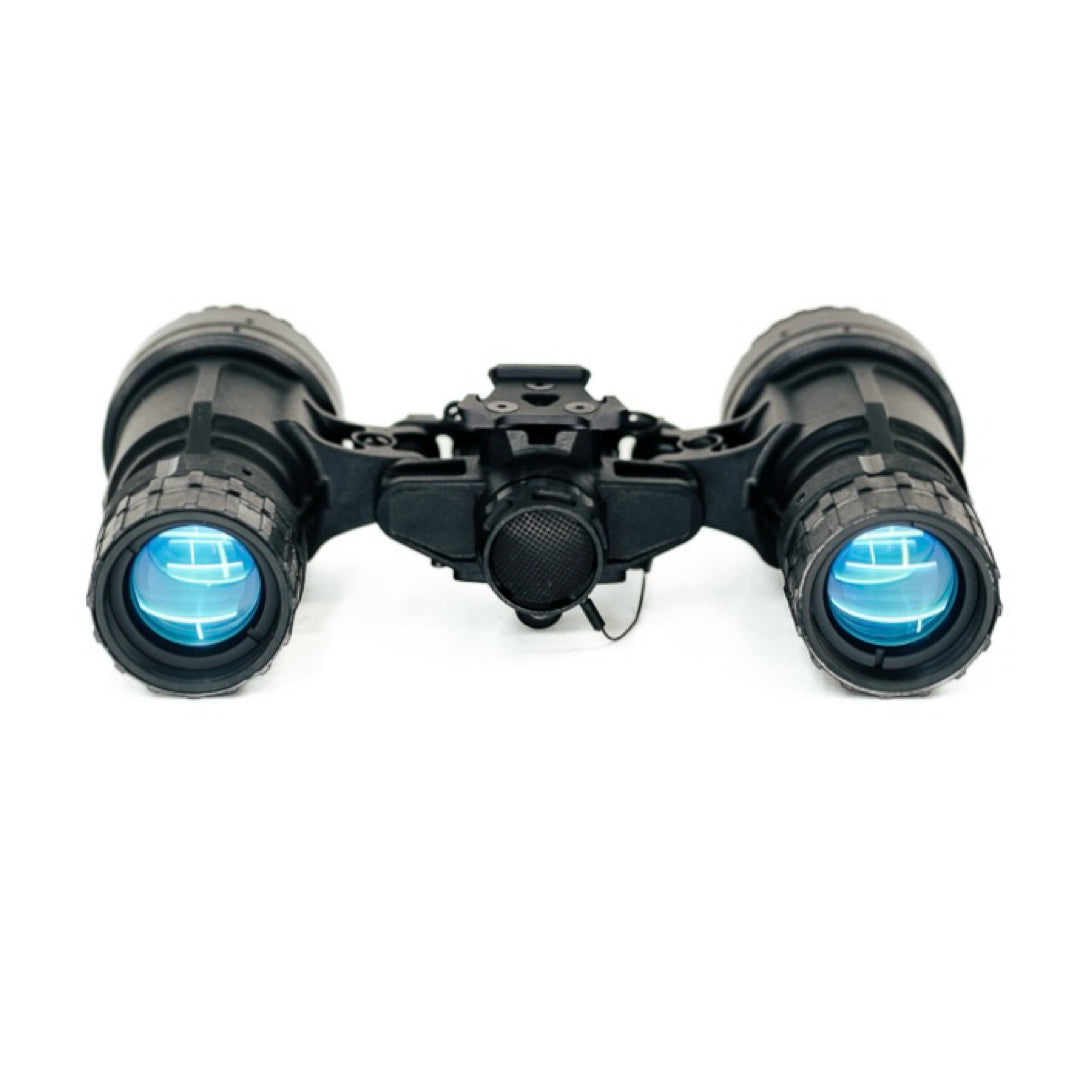

The Katana R Ultralight Articulating Night Vision Binocular - Katana Ruggedized (UANVB-R) is an articulating binocular housing made of high strength aerospace grade 7075-T6 aluminum. Using advanced multi-axis CNC machining an ultra lightweight and robust design is achieved, including an optimal single piece pod geometry. This binocular includes features such as individual pod stow shutoff, IPD stops, user adjustable pod tension, and low battery indicator. The device is powered on-board by a single CR123A for a continuous runtime of ~25 hours, and equipped with a LEMO port for external power pack use to achieve extensive run time
Material(s)
CNC machined 7075-T6 & 6061-T6 aerospace grade aluminum, aerospace Grade 4 Titanium.
____________________
Finish
Mil-standard Type III class II hard anodize, H-Series Cerakote
____________________
Tube Type
18mm MX-10160 or MX-11769 style with EGAC pigtail removed
____________________
IR Illuminator
No
____________________
Individual Pod on/off
Yes, individually.
____________________
Housing Weight
4.93oz / 0.30 lbs / 140g
____________________
Device Weight Standard
18.73oz / 1.17lbs / 530.98g
____________________
Device Weight Lightweight
w/o battery
15.48oz / 0.96lbs / 439.0g
____________________
On-Board Power
CR123A onboard with a runtime of ~25hours
____________________
Out-Board Power
Yes, LEMO port
____________________
Low Battery Indicator
Yes
____________________
Manual Gain Control
No
____________________
Ingress rating
Exceeds IP-68, and MIL-STD-810H
____________________
Warranty
Lifetime repair or replacement of all housing components no questions asked. (Does not cover damages to intensifier tubes or lens assemblies)
We build our devices using our suite of in house state of the art equipment, including the Hoffman Engineering ANV-126A Test Set and HVS Vision System. The same equipment tube manufacturers such as Elbit Systems of America and L3Harris Technologies use. This allows us to remove any subjectivity in assembly and maintain the absolute highest degree of precision possible. What this equates to is a device built to an exceeding degree of quality and to exacting standards.
