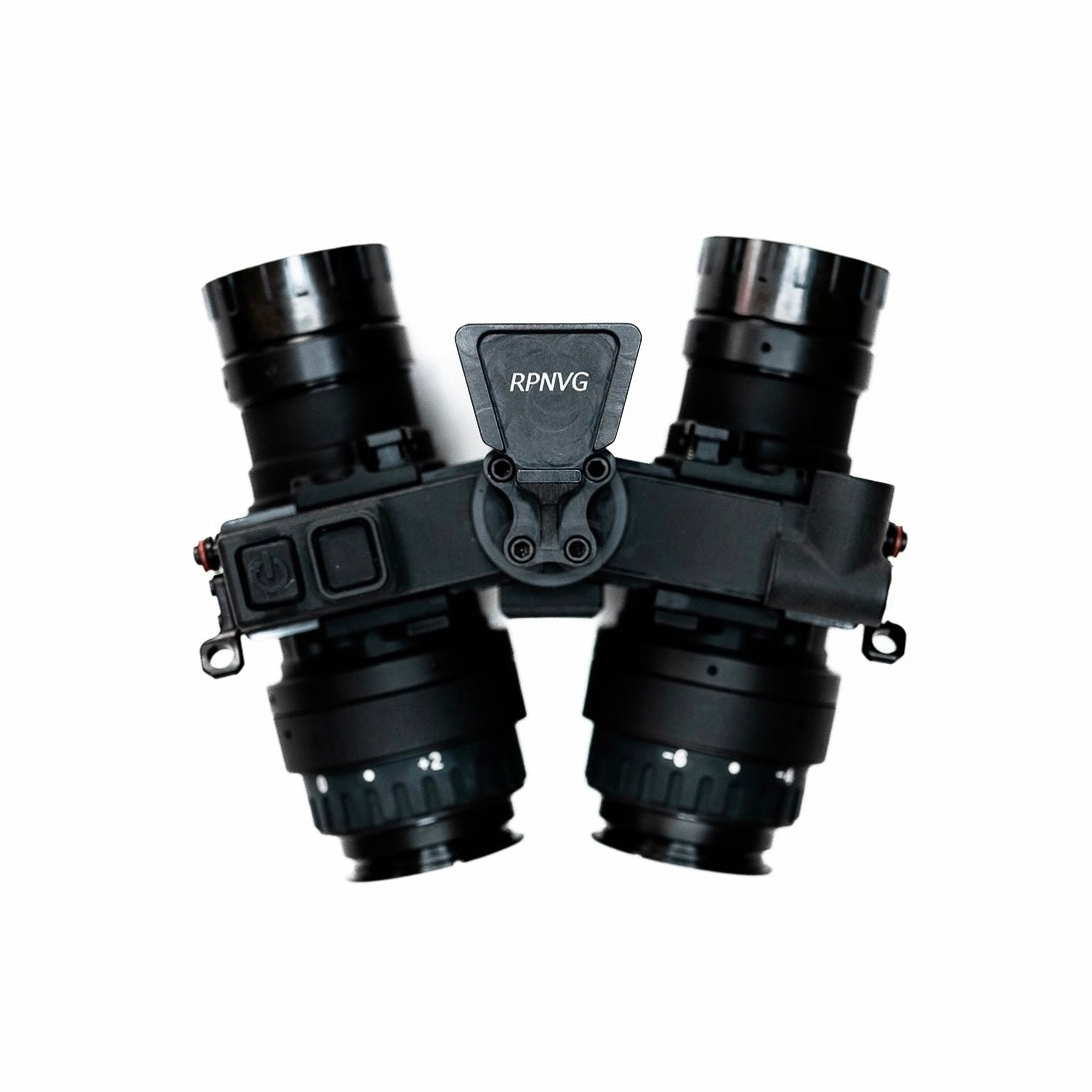

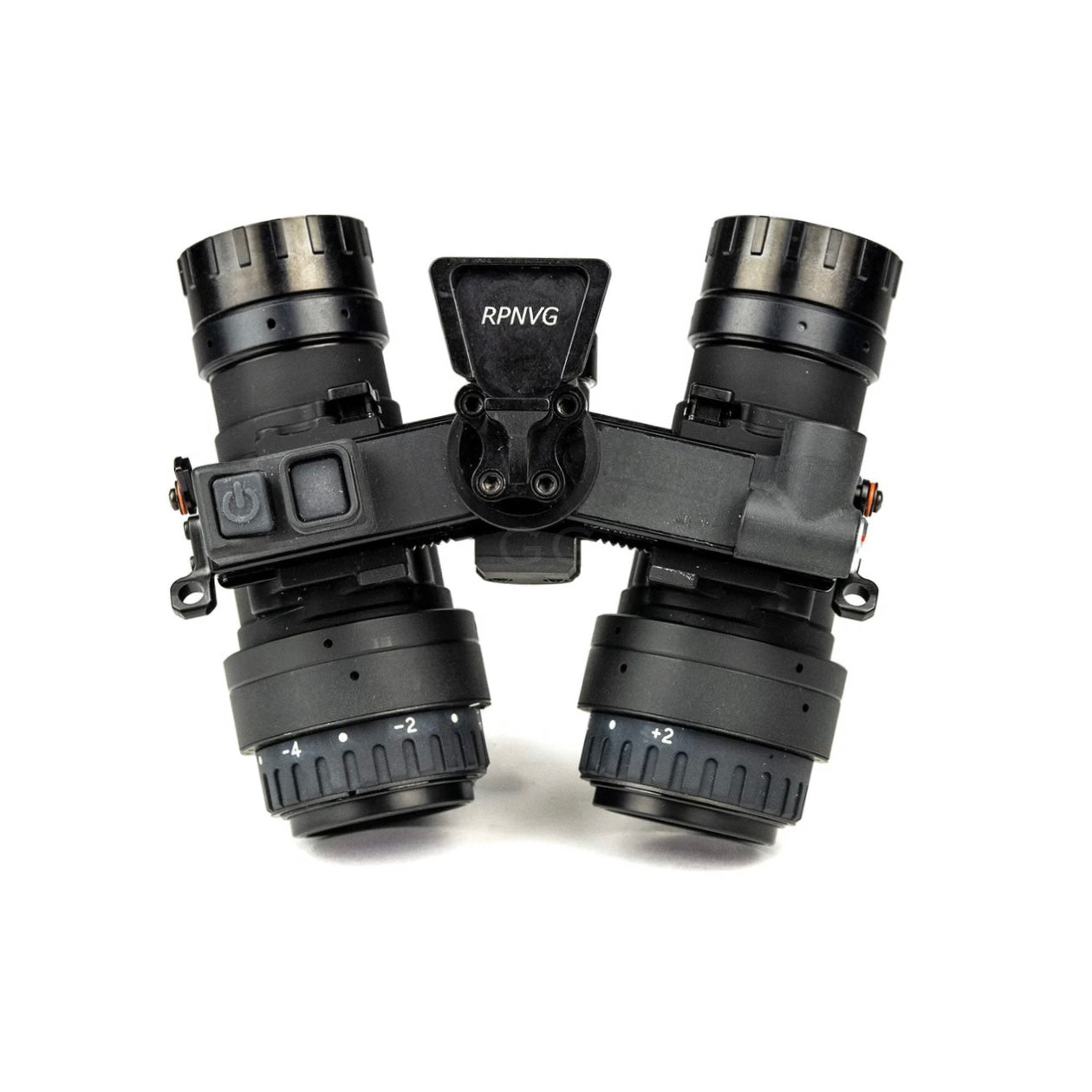

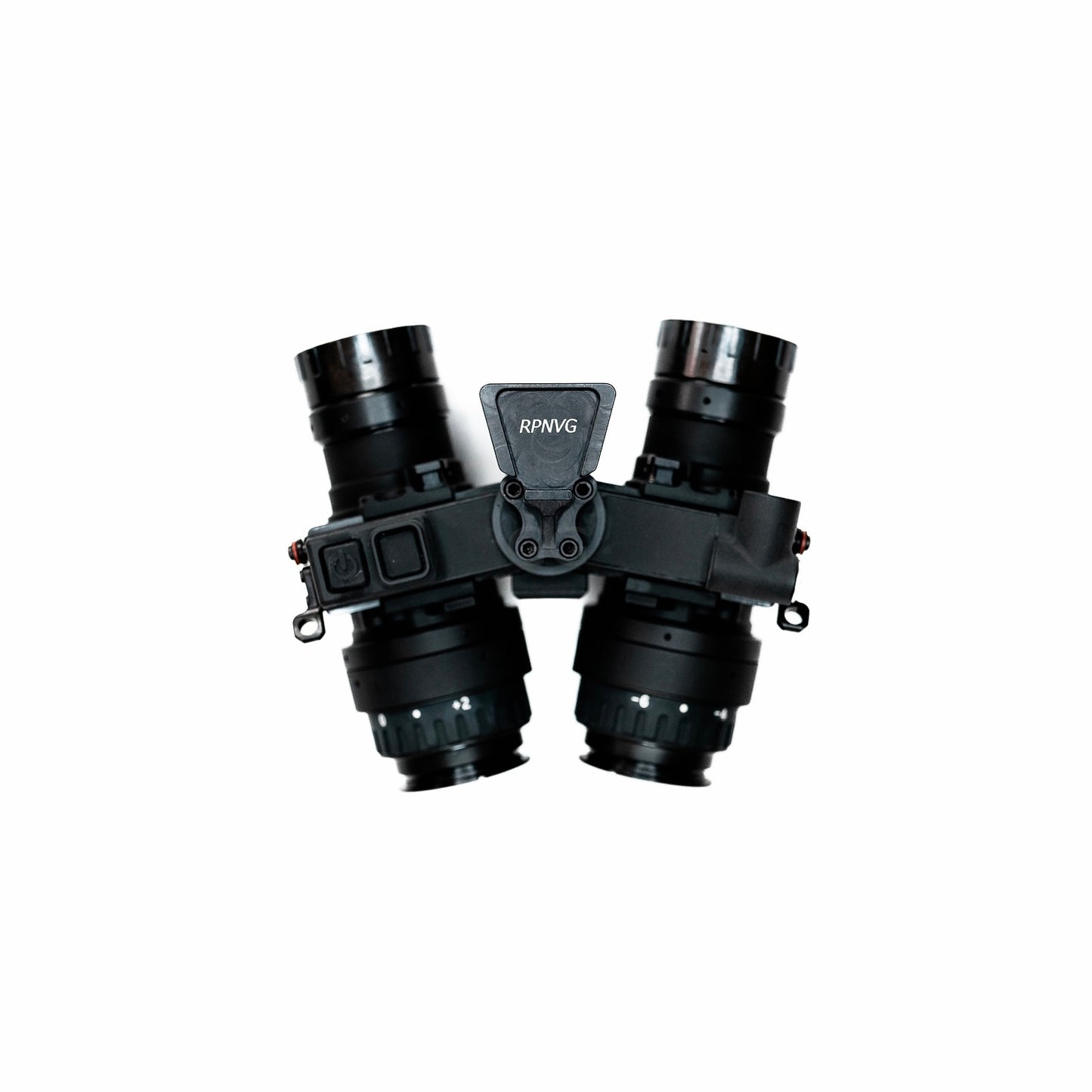

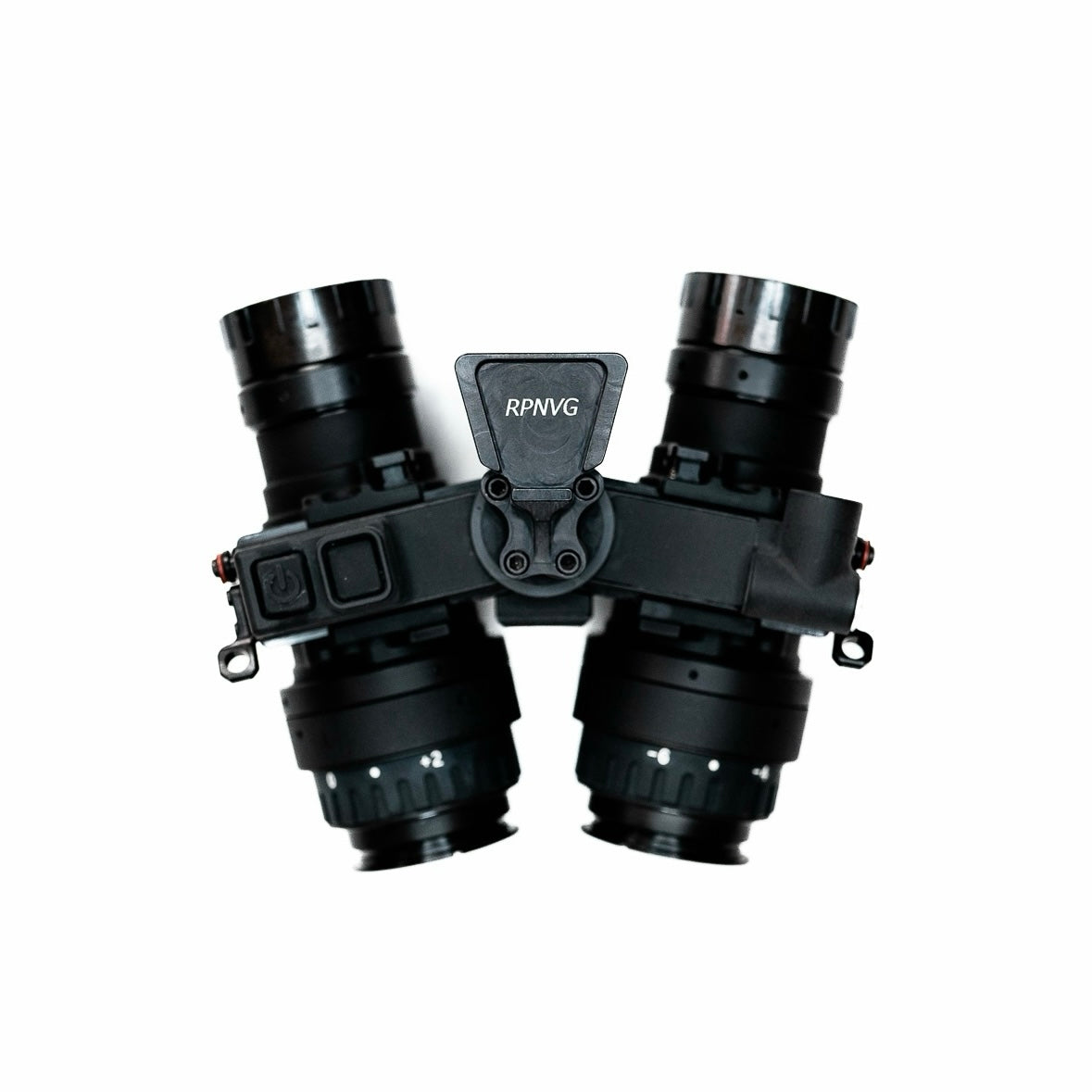

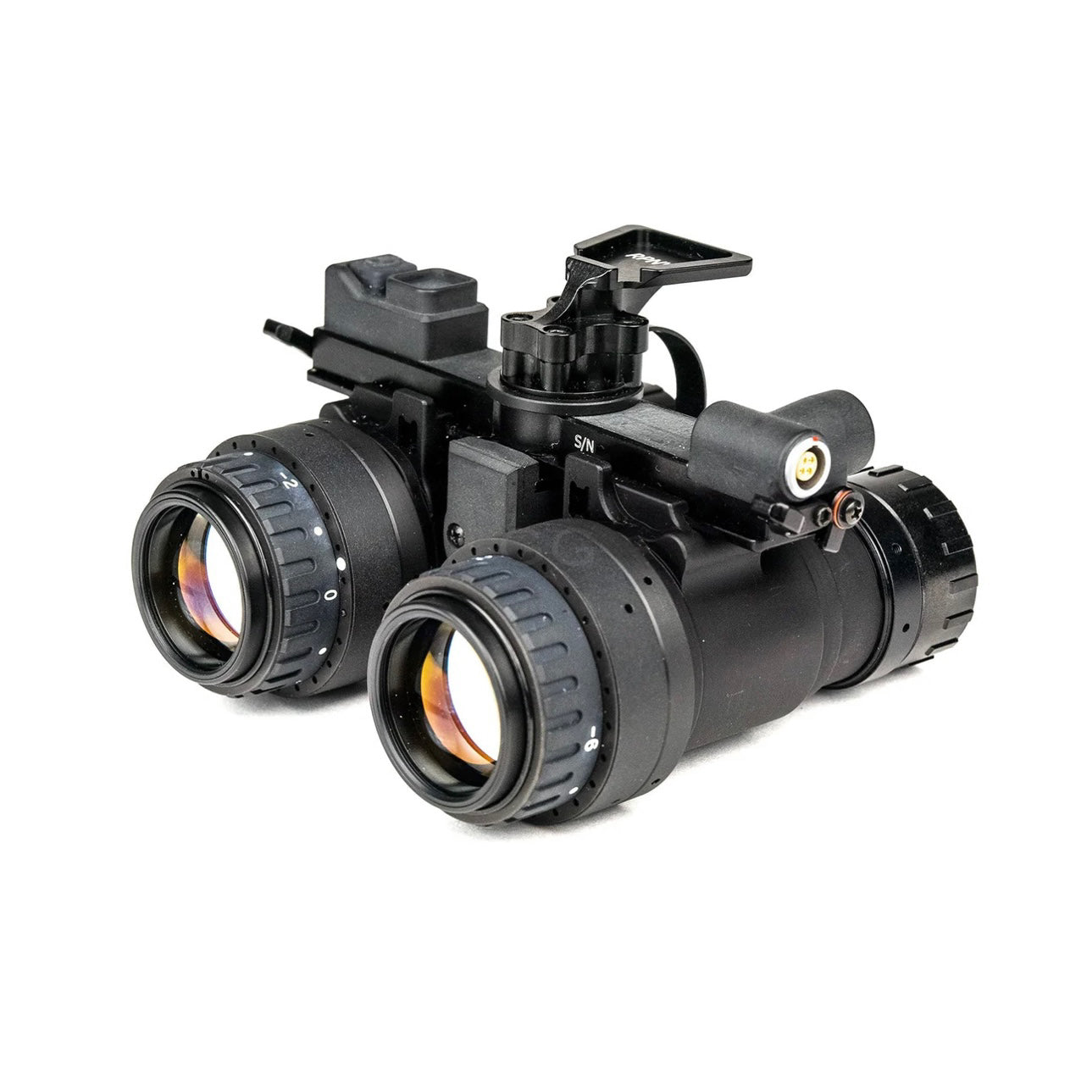

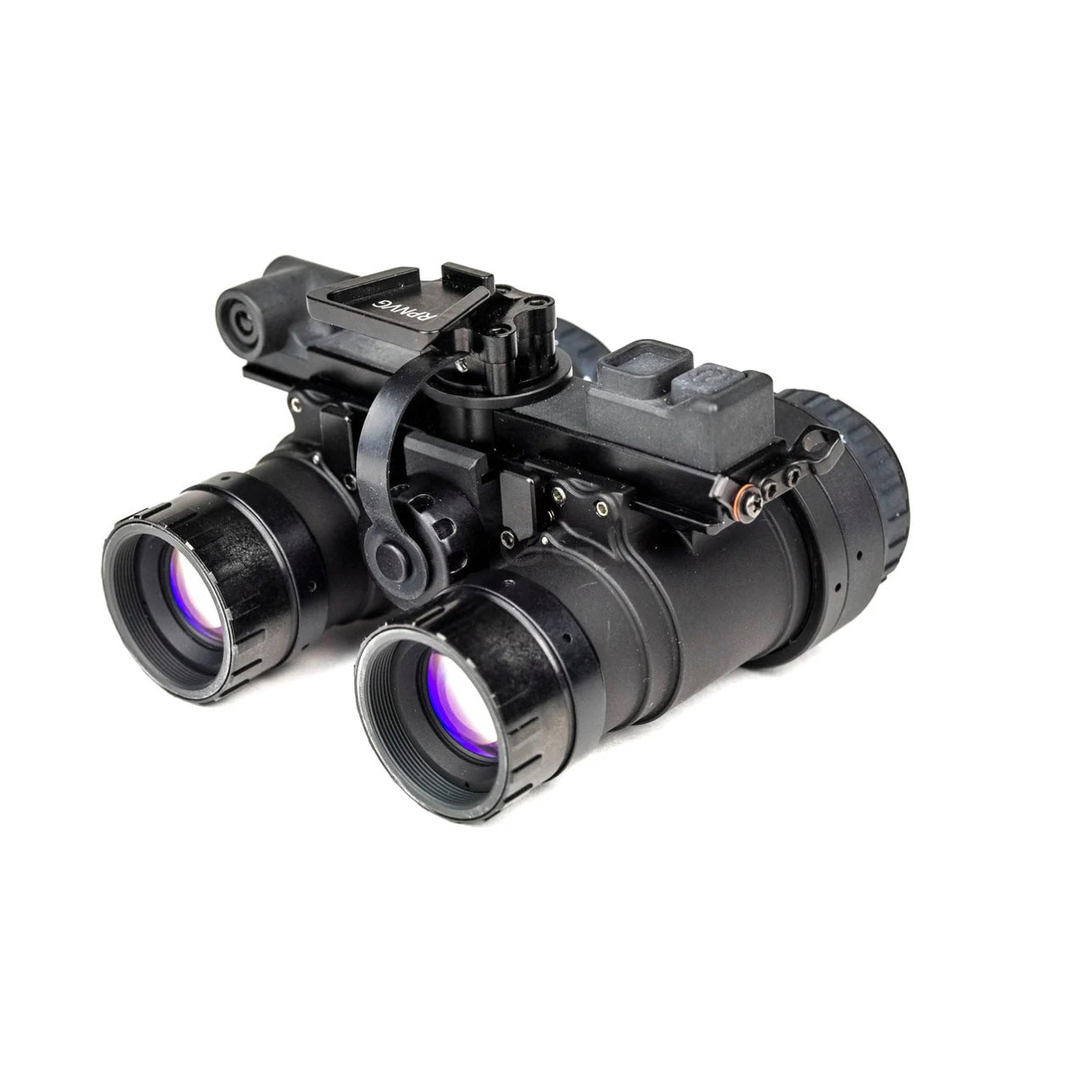

The AB Night Vision RPNVG (Ruggedized Panning Night Vision Goggle) is a feature rich goggle offering a user selectable field of view from 40° to 65°. The RPNVG runs off of a single CR123A battery. The RPNVG also features a native auxiliary LEMO port for remote battery pack use. The Ground Optimized Battery Pack from AB Night Vision is our preferred battery pack for the RPNVG. The RPNVG can also use legacy ANVIS packs or other standard LEMO battery packs. Much like the RNVG, the RPNVG also features inter-pupillary adjustment for precise adjustment to the user’s eye spacing. However, the method of adjustment is different for the RPNVG. The RPNVG uses a sprung button and detent system to lock into each finite adjustment point. There are integrated tether points for lanyard attachment on both left and right sides. The panning feature is user selectable in utilizing the RPNVG in either conventional 40° FOV mode or pan mode for ~65° FOV. Both optical pods can be individually removed without the use of tools. Modular power packs are available for left and right pods to run them in monocular configuration. The RPNVG is a uniquely versatile night vision goggle system checking many boxes. If you don’t need articulation then there is a good chance the RPNVG is for you. The extra field of view offered by the RPNVG really adds to the overall capability of the system. It may not seem like much, but the gain from 40° to 65° of Vision is quite tremendous.

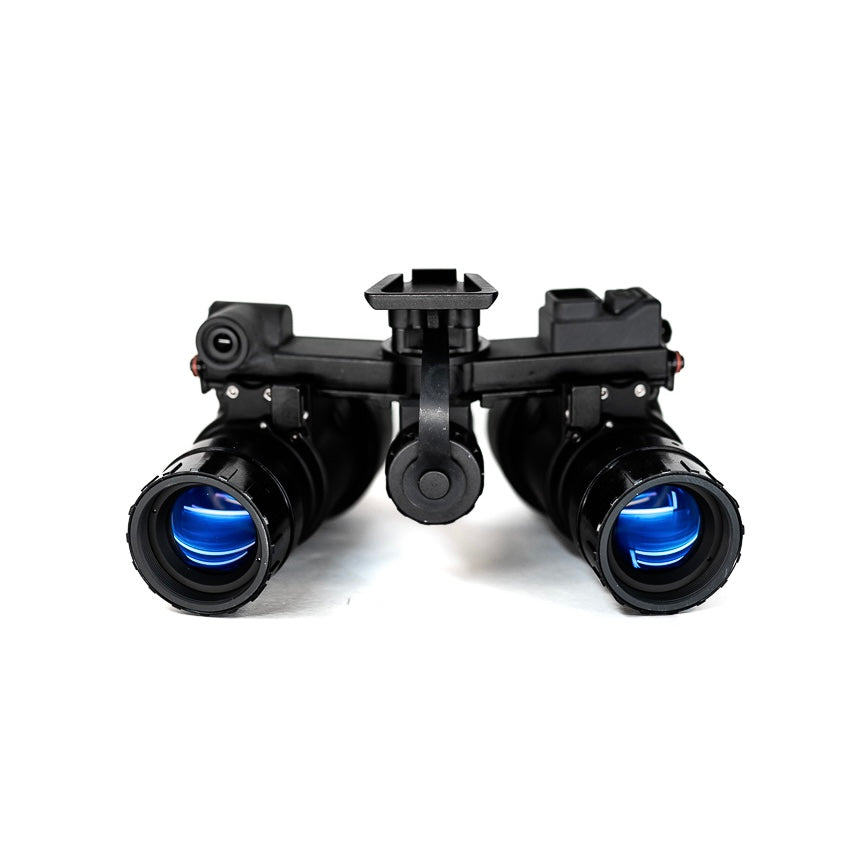

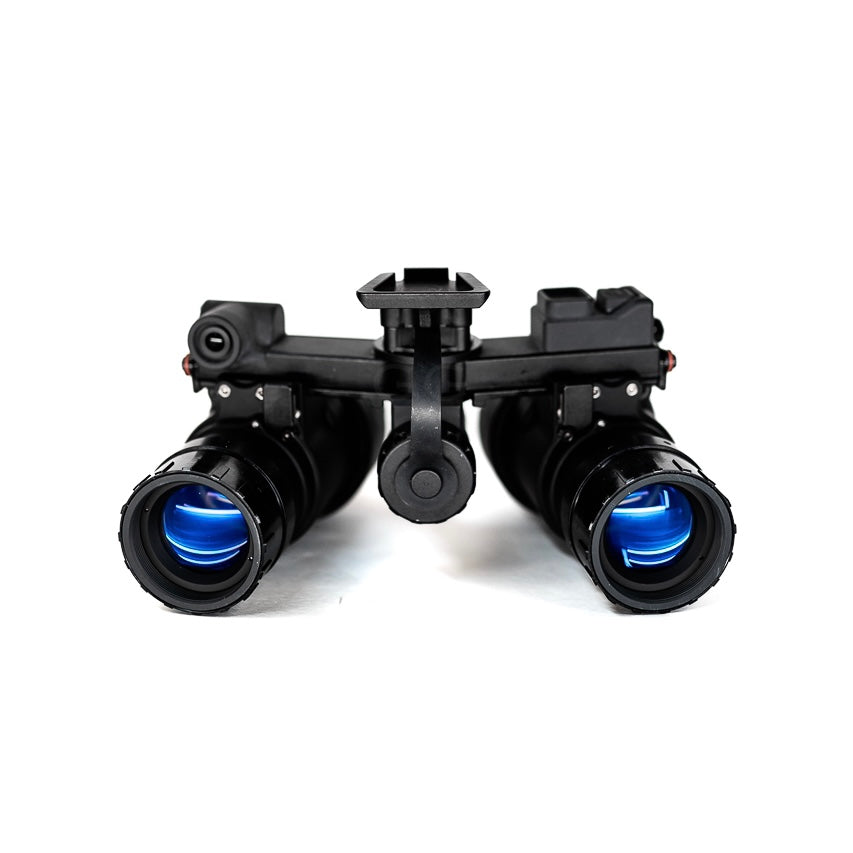

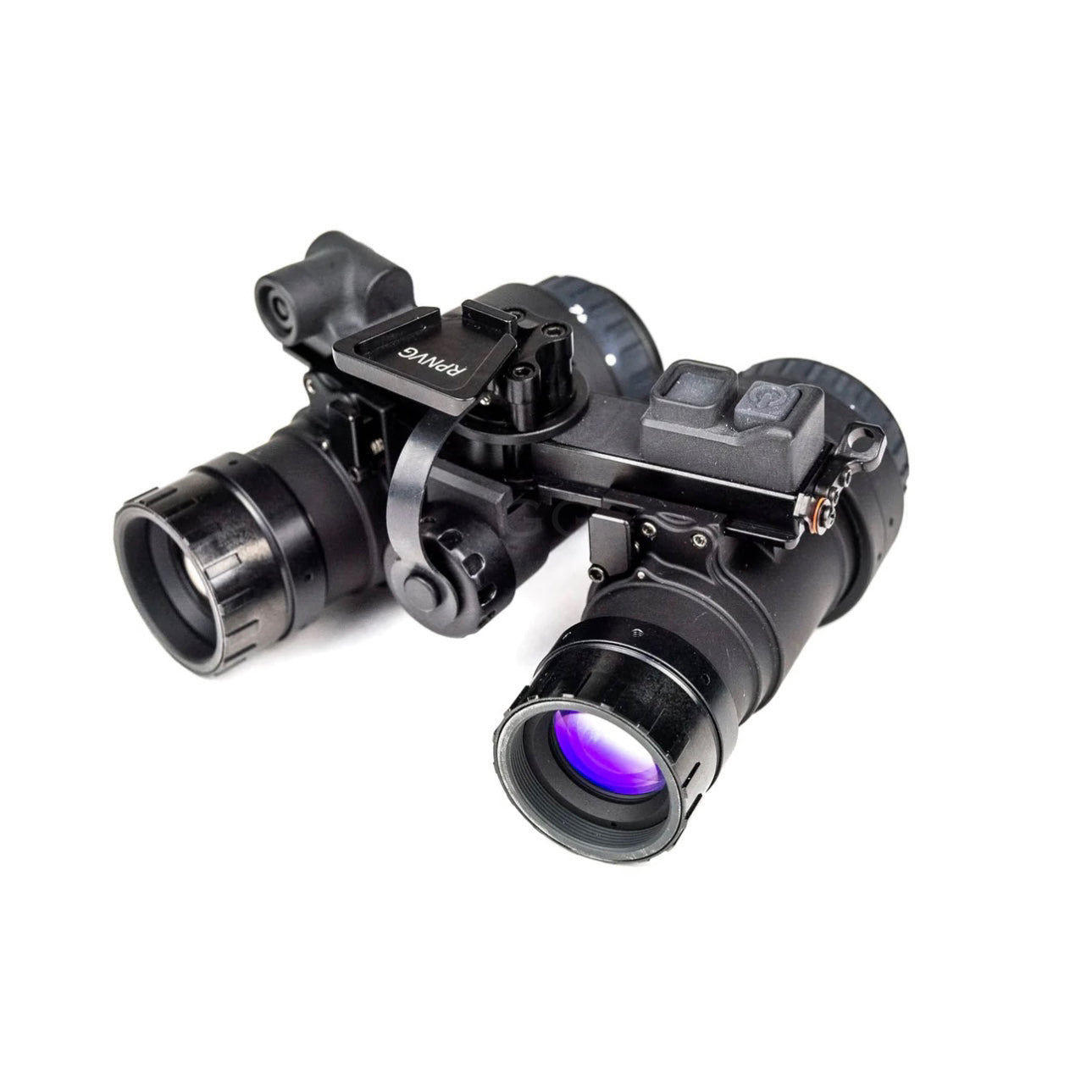

The RPNVG - Ruggedized Panning Night Vision Goggle from AB NightVision Inc. is an extremely tough, full featured night vision binocular with panning and modular functionality. Unlike fixed bridge binoculars before it, the RPNVG offers the ability to go from a collimated straight forward view to a wide-angle panning view. The optical pods can also be removed without the use of tools to allow the user to have two monoculars.
The binocular uses lightweight push button switches with the IR illuminator switch recessed within a fence to prevent accidental activation. The unit features “IR Illuminator On” and “Low Battery” indicators within the viewing area. An IR spot/flood adapter can be added if the user desires more range from their IR illuminator.
The RPNVG is available in CR123 battery style. It also includes an auxiliary port which allows for the use of an external ANVIS style battery pack (for battery packs outputting up to 3.3v maximum.)

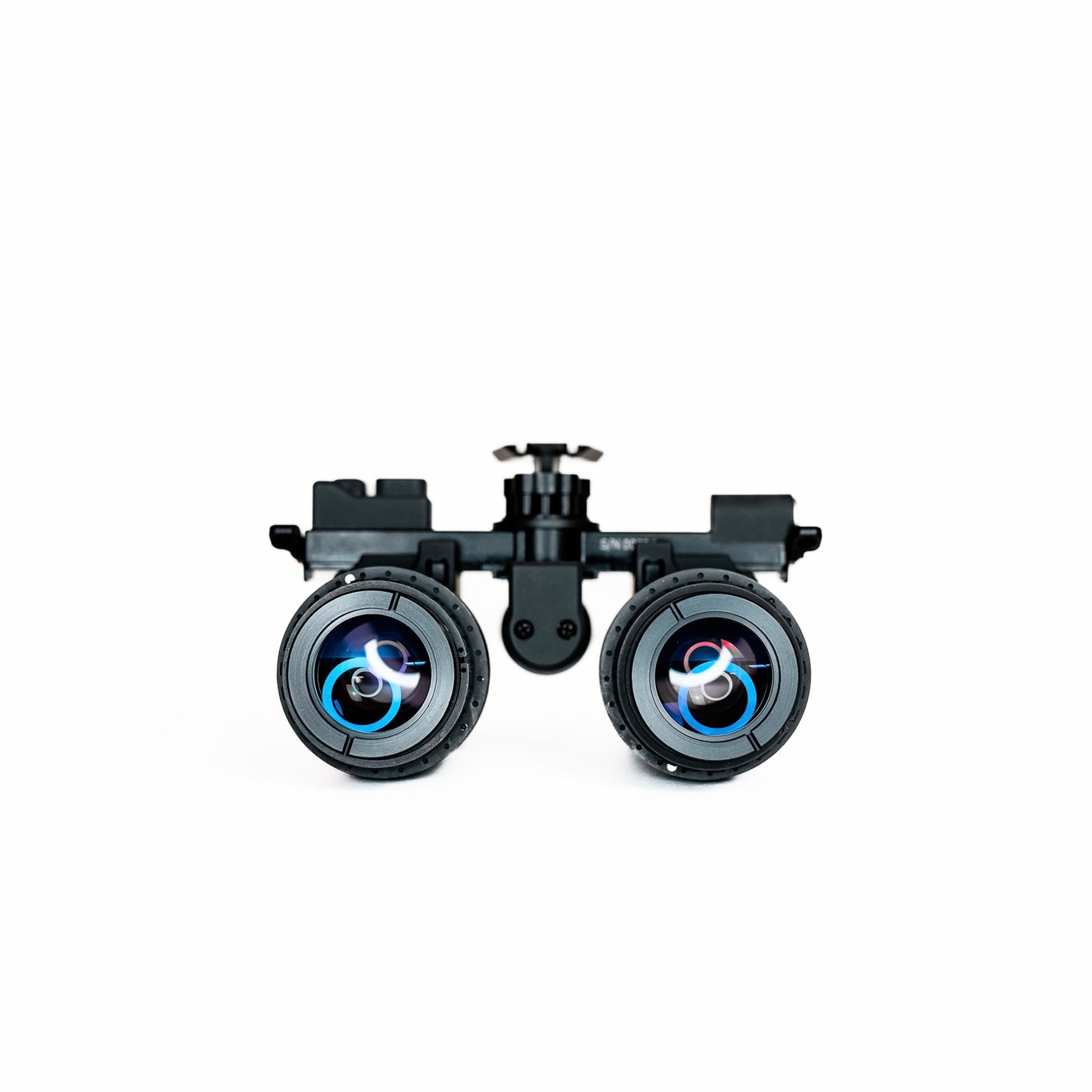

RPNVG optics feature a full range of adjustment. The Mil-spec Objectives allows the user to focus between 9.8 inches and infinity, while the Mil-spec Eyepieces offer a diopter adjustment range of -6 to +2. The interpupillary distance is adjustable to match the user’s eye spacing from 51mm to 73mm.
We build our devices using our suite of in house state-of-the-art equipment, including the Hoffman Engineering ANV-126A Test Set and HVS Vision System. The same equipment tube manufacturers such as Elbit Systems of America and L3Harris Technologies use. This allows us to remove any subjectivity in assembly and maintain the absolute highest degree of precision possible. What this equates to is a device built to an exceeding degree of quality and to exacting standards.
Tube options:
NNVT
- These are 1400+ Minimum FOM auto-gated auto-gain white phosphor intensifiers in 10160 format. This means the manual gain function on the PVS-14 body is non functioning as there is no manual gain controller on the intensifier tube. NNVT are a value minded option offering a functional capability at a modest price point. In a comparative sense these are similar to Photonis tubes in maintaining great resolution across light levels. We use auto-gated NNVT tubes not the non auto-gated tubes and calling them auto-gated as can be found on the internet.
Elbit Gen 3 Thin-Filmed
- FOM is typically 1800-2400+ and can sometimes range much higher than this too. We hold these above their minimums in specs and cosmetics.
L3 Gen 3 Unfilmed
- Unfilmed (2200+ FOM Common)
- Exceeds spot specification minimum
- We sort and batch our tubes to ensure all have as clean screen cosmetics and high specifications as possible. Each exceeding the minimum standards for its type.
- L3 Unfilmed High FOM option. These tubes are hand selected from our Mil-Spec and Aviator tubes to achieve the highest specification possible with as clean screen cosmetics as possible (2376+, 2400+ Common).
POWER SOURCE: (1) CR123 SIZE BATTERY, OR AUXILLARY BATTERY PACK (OUTPUTTING 3.3V MAX)
FOCUS RANGE: 9.8” TO INFINITY
OPERATION TIME: APPROXIMATELY 16 HOURS ON LITHIUM BATTERY
MAGNIFICATION: (1X) ONE POWER
FIELD OF VIEW: 40 – 65 DEGREES
INTERPUPILLARY ADJUSTMENT: 57 TO 98MM
DIOPTER ADJUSTMENT: -6 TO +2
EYE RELIEF: 25MM
WEIGHT: 605g (21.3 oz) W/O BATTERY, 621g (21.9 oz) W/ BATTERY
DIMENSIONS: 5.2” X 4.2” X 3.1”
IR ILLUMINATOR: BUILT IN, ACCEPTS SPOT/FLOOD ADAPTER
WATER RESISTANCE: SUBMERSIBLE TO 66 FT (NOT TO BE POWERED ON UNDER WATER)
IR LED & LOW BATTERY INDICATORS: YES
INTENSIFIER TUBES: COMPATIBLE WITH MX-10160 STYLE
OPTICS: COMPATIBLE WITH PVS-14 EYEPIECE AND OBJECTIVE
WARRANTY: 5 YEARS ON HOUSING PARTS AND SERVICE PER POLICY, SEE WEBSITE TERMS FOR MORE DETAILS
