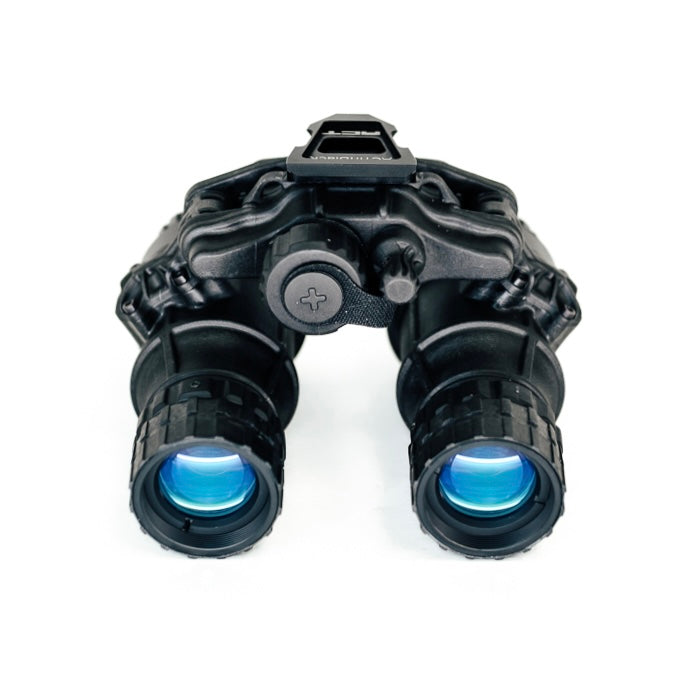

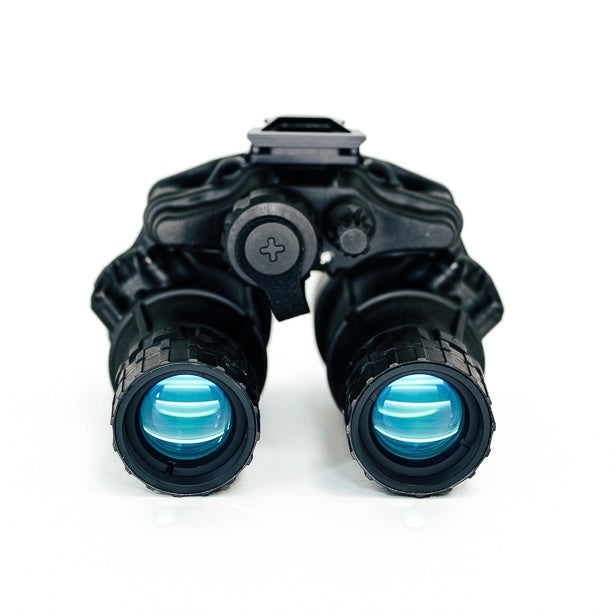

The DTNVS-MG (Dual Tube Night Vision System Manual Gain) housing developed by ACTINBLACK is the manual gain variant of the renowned best in class articulating binocular. The DTNVS-MG is a feature rich night vision goggle with a full range of articulation, individual pod power on/off when articulated, on-board illuminator, auto off/on when put to or from stow, adjustable diopters, all while exceeding MIL-STD-810G.

We build our devices using our suite of in house state-of-the-art equipment, including the Hoffman Engineering ANV-126A Test Set and HVS Vision System. The same equipment tube manufacturers such as Elbit Systems of America and L3Harris Technologies use. This allows us to remove any subjectivity in assembly and maintain the absolute highest degree of precision possible. What this equates to is a device built to an exceeding degree of quality and to exacting standards.

Tube options:

L3  Gen 3 Unfilmed

  • Unfilmed (2200+ FOM Common)
  • Exceeds spot specification minimum
  • We sort and batch our tubes to ensure all have as clean screen cosmetics and high specifications as possible. Each exceeding the minimum standards for its type.
  • L3 Unfilmed High FOM option. These tubes are hand selected from our Mil-Spec and Aviator tubes to achieve the highest specification possible with as clean screen cosmetics as possible (2376+, 2400+ Common).


 Tech Specs

Finish Matte Black, Corrosion Resistant
Fiber re-enforced polycarbonate body
Capability Flip-Up On-Off
Side Flip-Up On-Off
Built-in IR LED with “IR-on” indicator in FOV
Low battery indicator in FOV
Waterproof: 20m (66ft) for 2 hours
Corrosion Resistance against salt water
Magnification 1x
Lens System F/1.2
FOV 40°
Range of Focus 0.25 m to ∞
Diopter Adjustment +2 to -6 dpt
Infrared Illuminator Yes
Power Supply 1x CR123A
Battery Life Approx. 25 Hours at Room Temperature (CR123A)
Dimensions 76 x 105 x 111 mm
Weight 441-510g, depending on optics and tubes
Standards Exceeding MIL-STD-810G
